Yaesu FT-480R 2 meter band SSB, CW & FM Transceiver
Owner Rudolf Bosnjak - T94RB, Sarajevo, Bosnia and Herzegovina.
SPECIFICATIONS
The FT-480R is an advanced transceiver designed for the demanding 2-metre operator, offering a range of features that enhance both performance and usability. This model operates across a 144 to 146 MHz frequency range and supports multiple modes, including USB, LSB, FM, and CW. Controlled by a sophisticated NMOS 4-bit microprocessor, the FT-480R boasts full PLL synthesis with selectable frequency steps of 10Hz, 100Hz, 1KHz, 25KHz, and 100KHz, making it highly precise for various communication needs. Its compact design ensures that it is particularly well-suited for mobile operations.
One of the standout features of the FT-480R is its operating flexibility, enabled by the microprocessor. Users can program up to four memory channels with their preferred frequencies, allowing for quick access during operation. The MEMORY SCAN function facilitates seamless scanning through these channels, enhancing the user experience. Additionally, the transceiver includes a digital display for frequency monitoring and a front panel meter with bright LEDs that provide clear visibility of received signal strength and transmitter output.
Convenience features further augment the FT-480R's functionality. The standard microphone has a PIT switch, up/down scanning controls, and a tone call button for repeater operation. The device also offers receiver offset tuning for both CW and SSB modes and a digitally synthesized dual VFO system, providing operators with versatile options for their communication needs. With an output power of 10W (high) and 1W (low), the FT-480R is a robust choice for casual and serious operators looking for a reliable transceiver. This second-hand item is available with 0% VAT.
| GENERAL | |||||||||||||
| Type: | Amateur VHF transceiver | ||||||||||||
| Frequency range: | Europe TX: 144-146 MHz RX: 144-146 MHz USA TX: 143.5-148.5 MHz RX: 143.5-148.5 MHz |
||||||||||||
| Tuning steps: | Europe 10 / 100 Hz, 1 / 12.5 / 25 KHz USA 10 / 100 Hz, 1 / 20 / 100 KHz |
||||||||||||
| Frequency stability: | ? ppm | ||||||||||||
| Mode: | FM / SSB / CW | ||||||||||||
| Channels / memory management: | 4 regular 1 priority RAM storage. External DC required for memory retention! |
||||||||||||
| Repeater shift / offset: | ±600 KHz | ||||||||||||
| Power supply: | 13.8 VDC | ||||||||||||
| Current drain / power consumption: | RX: 500 mA TX: Max 3 A |
||||||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||||||||||||
| Dimensions (W*H*D): | 180*60*240 mm (7.09*2.36*9.45") | ||||||||||||
| Weight: | 2.9 Kg (6.39 lb) | ||||||||||||
| Other features: | NB, RIT | ||||||||||||
| RECEIVER SECTION | |||||||||||||
| Receiver system: | Double conversion superheterodyne 1st IF: 10.81 MHz 2nd IF: 455 KHz |
||||||||||||
| Sensitivity: | FM: 0.35 uV for 20 dB QS SSB/CW: 0.5 uV for 20 dB S/N |
||||||||||||
| Selectivity: | FM 14 KHz (-6 dB) 25 KHz (-60 dB) SSB/CW 2.4 KHz (-6 dB) 4.1 KHz (-60 dB) |
||||||||||||
| Image rejection: | Better than 60 dB | ||||||||||||
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm | ||||||||||||
| External speaker connector: | 3.5 mm, 8 ohm | ||||||||||||
| TRANSMITTER SECTION | |||||||||||||
| RF output power: |
|
||||||||||||
| Modulation system: | |||||||||||||
| Max FM deviation (Factory set): | ±5 KHz | ||||||||||||
| Spurious emissions: | Better than -60 dB | ||||||||||||
| Microphone impedance/connector: | 600 ohm / 8-pin (Metal locking ring connector) | ||||||||||||
| Microphone input level: | ? mV |

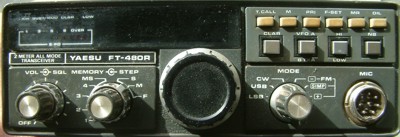

Click above photo to see a larger photo.
