Sommerkamp TS-727GT CB RADIO
Owner Rudolf Bošnjak - E71RB, Sarajevo, Bosnia and Herzegovina...
SPECIFICATIONS
| GENERAL | |||
| Type: | Citizen band transceiver | ||
| Frequency range: | 26.?-27.? MHz | ||
| Channels / tuning steps: | 6 | ||
| Mode: | AM | ||
| Frequency control: | Two XTALs per channel | ||
| Frequency stability: | ?% | ||
| Clarifier or Delta tune: | No | ||
| Power supply: | 12 VDC | ||
| Current drain / power consumption: | RX: 100 mA TX: 500 mA |
||
| Antenna impedance / connector: | 50 ohm / SO-239 | ||
| Dimensions (W*H*D): | 155*57*230 mm (6.1*2.24*9.06") | ||
| Weight: | 1.5 Kg (3.31 lb) | ||
| Other features: | |||
| RECEIVER SECTION | |||
| Receiver system: | Single conversion superheterodyne IF: 455 KHz |
||
| Sensitivity: | |||
| Selectivity: | |||
| Image rejection: | |||
| AF output power / speaker: | ? W at ?% distortion / ? ohm | ||
| External speaker connector: | |||
| TRANSMITTER SECTION | |||
| RF output power: | 500 mW | ||
| Modulation system: | |||
| Max FM deviation (Factory set): | No FM | ||
| Spurious emissions: | Better than -? dB | ||
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) | ||
| Microphone input level: | ? mV | ||
| MISCELLANEOUS | |||
| Manufactured: | Japan, 198x-198x (Discontinued) | ||
| Main PCB: | |||
| Sub PCBs: | |||
| Additional info: | |||
| Related documents: | |||
| Sams Photofact #: | None | ||
| Modifications and fixes: | |||
| Reviews: | |||
| Options / Accessories: |
|

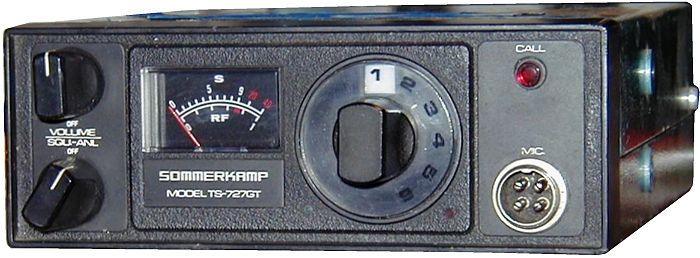

Click above photo to see a larger photo.
