SMD REVORKER STATION 852

Owner   Rudolf  Bošnjak  - E71RB, Sarajevo, Bosnia and Herzegovina...

Detaljni opis

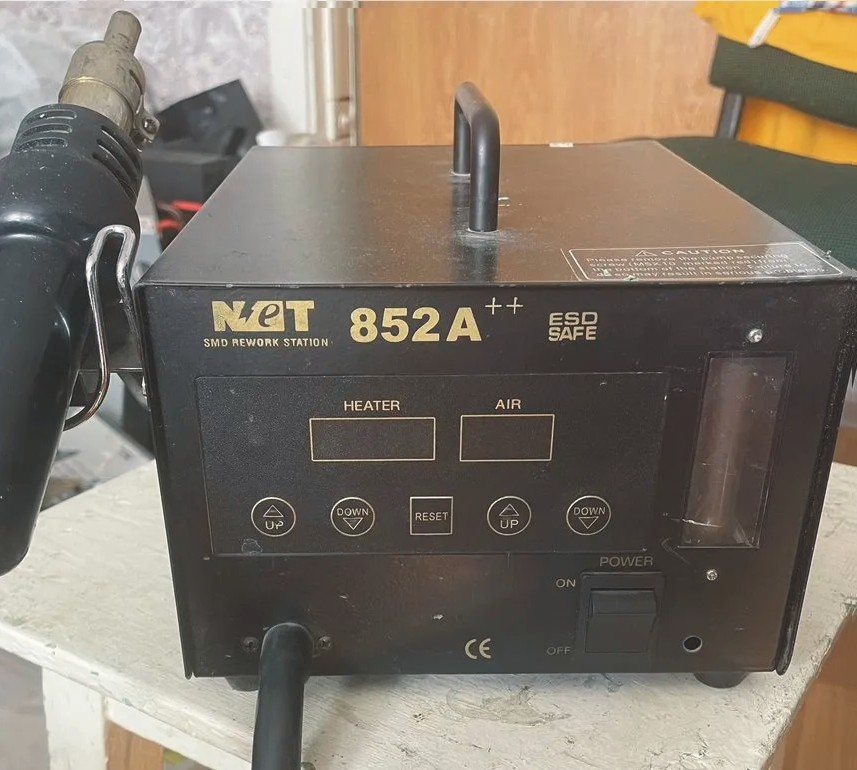

Name: NET 852 SMD REWORK STATION

 Specification:

- Input Voltage 220V AC *--

- Power Consumption (max) 320W *

- Pump Type Diaphragm pump *Air Flow Rate (max) 23L /min

- Hot Air Temperature 100℃ ~ 480℃

- Dimension 187(W)x135(H)x245(D)mm

 Functions:

- Closed loop Temperature sensor and dIgital display system. Quick startup, increase temperature fast. Can control temperature for welding removing with accurately and reliability.

- Anti-static design, it is prevent PCB damaged by static electric or current leakage.

- No touch PCB point soldering method to prevent the SMD component shift or blow away. *

- Air flow and air temperature can be adjusted in a large range.It is suitable for soldering QFP & SOP IC. Can be change nozzle to suitable different type of SMD desoldering work.

- Heater and nozzle meet with international standard.

- Blow away heat automatically after soldering or desoldering to extend life of heater and handle.

-The display of Setting temperature and actual temperature can be selected. * Suitable for most of SMD soldering and desoldering such as SOIC, CHIP, QFP, PLCC, BGA etc.

- Can be used to shrink plastic bag

Click above photo to see a larger photo.
