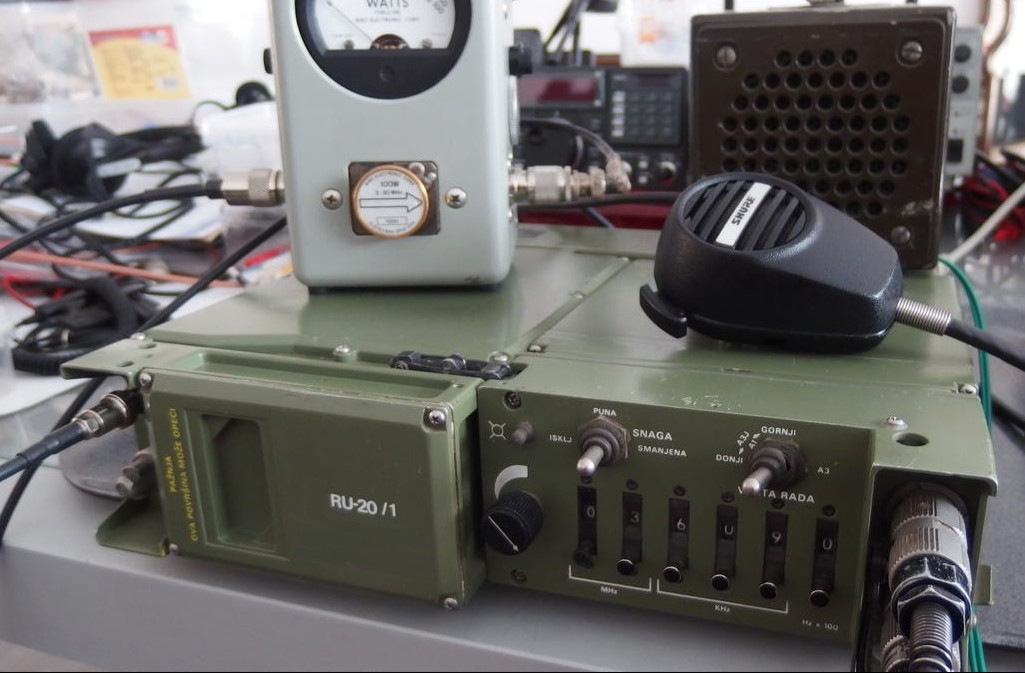

RU-20 BIRD 43 POWER OUTPUT MEASUREMENT - BIRD 43
MJERENJE IZLAZNE SNAGE
RU-20 HF DIPOLE ANTENNA -1.8-30MHZ-ROCKWELL
COLLINS ANTENNA-PRC-515 - AT35.

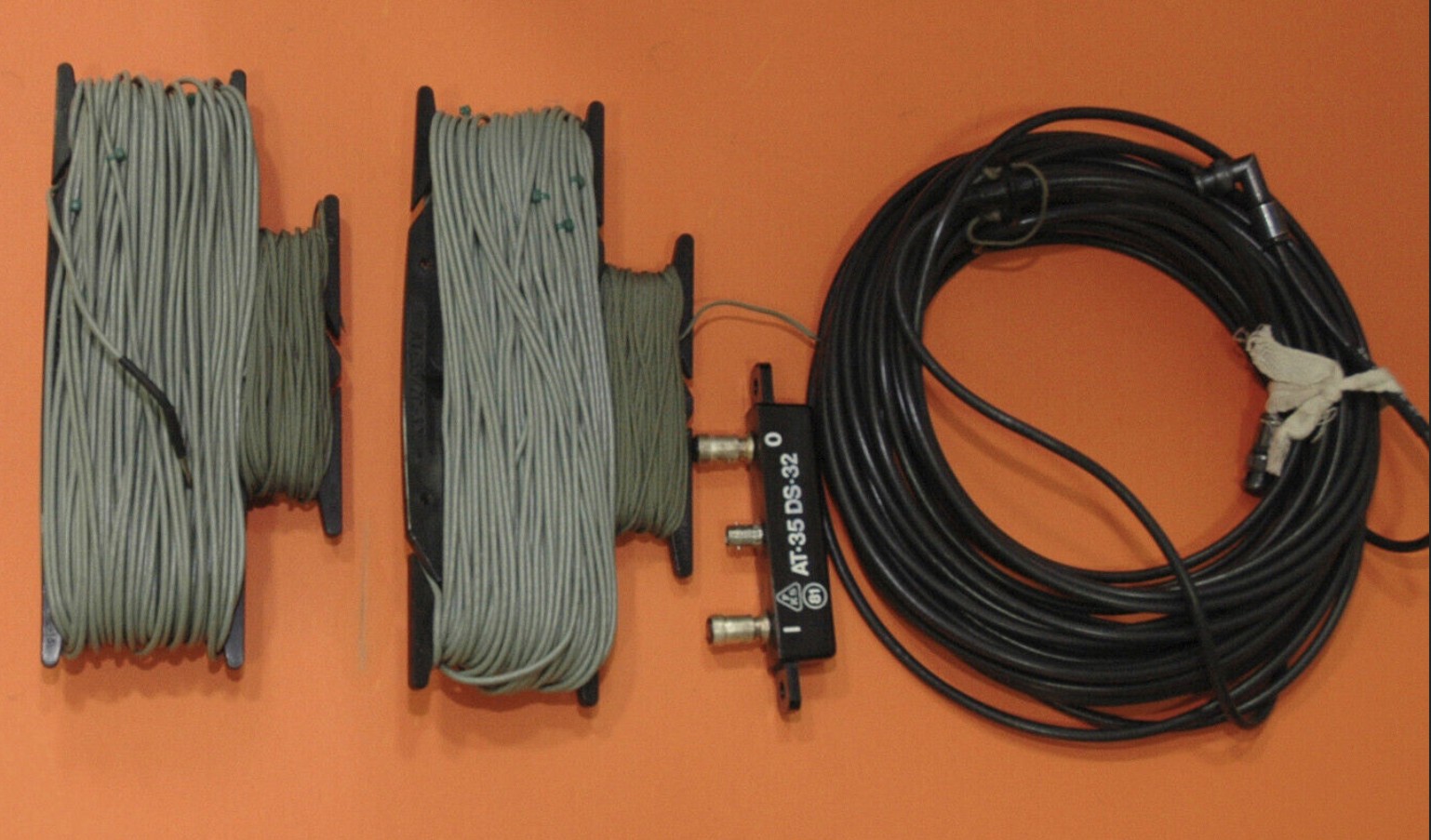

RU-20 HF DIPOLE ANTENNA -1.8-30MHZ - AT35.
RU-20 HF DIPOLE ANTENNA -1.8-30MHZ - AT35.

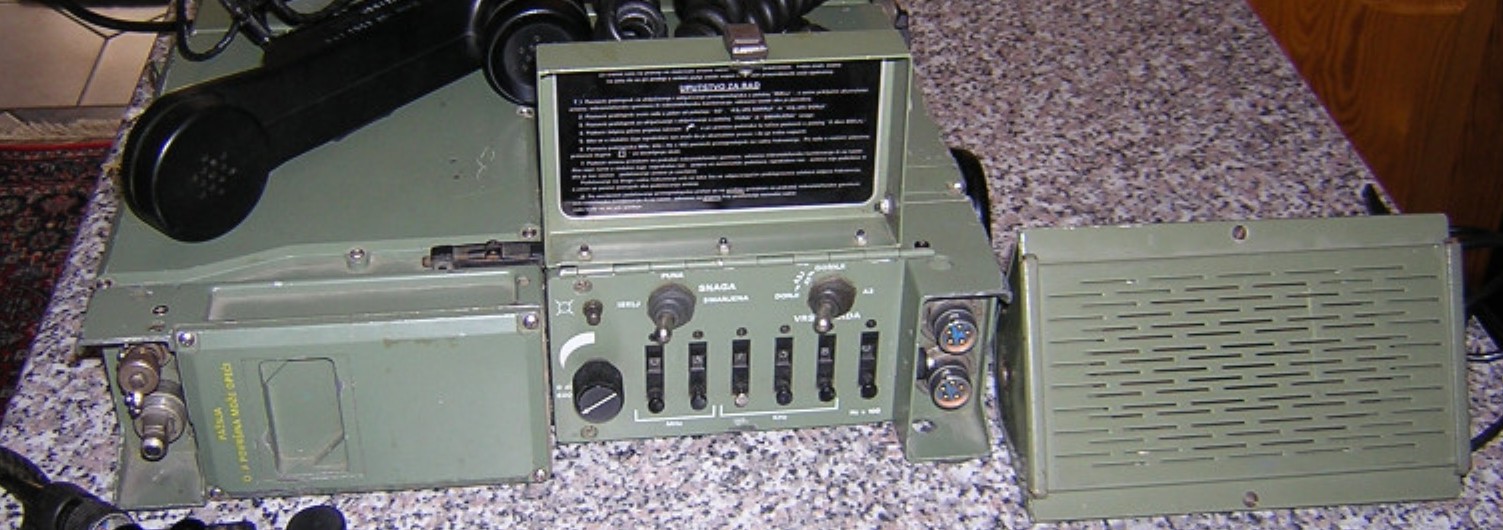

RU-20 EXTERNAL SPEAKER - VANJSKI ZVUČNIK.

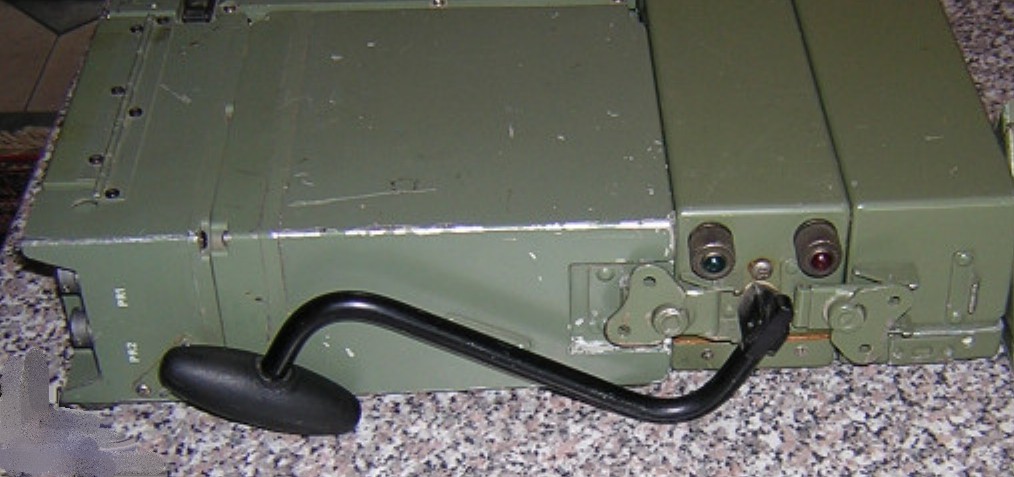

RU-20 HAND GENERATOR FOR BATTERY CHARGING -
RUČNI GENERATOR ZA PUNJENJE BATERIJA.
RU-20 POWER CABLE FROM EXTERNAL BATTERIES -
NAPOJNI KABL OD VANJSKIH BATERIJA.

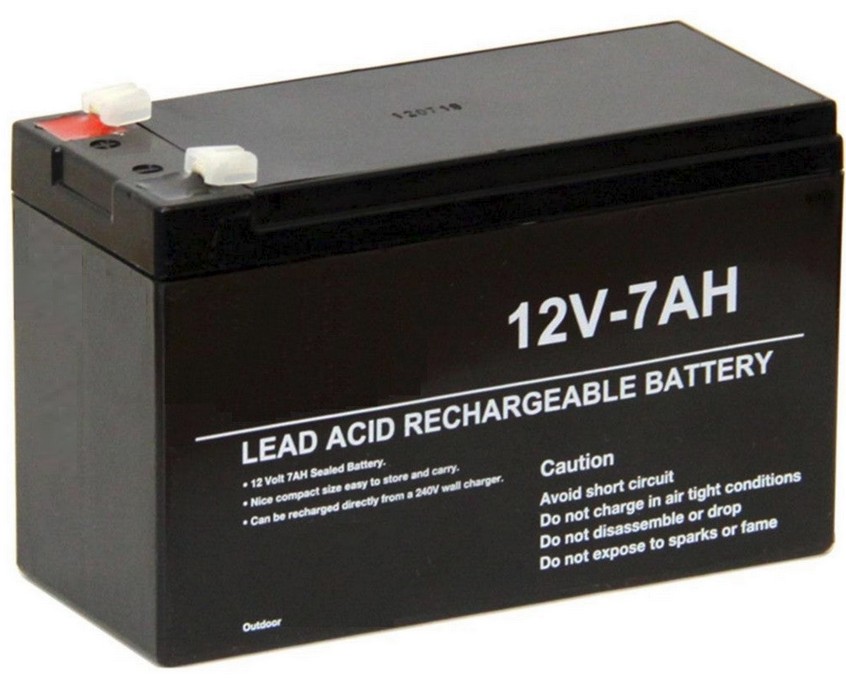

2 X 12V LEAD ACID BATTERIES FOR POWERING THE
DEVICE IN PORTABLE OPERATION - 2 OLOVNE BATERIJE ZA NAPAJANJE UREĐJA U
PORTABL RADU.
RU.20 SWITCHING POWER SUPPLLAY 26V -
PREKIDAČKI ISPRAVLJAČ 26 VOLTI

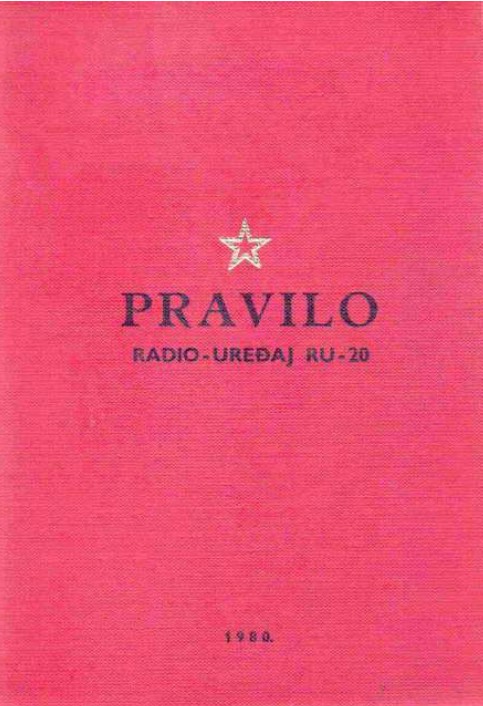

Pravilo_RU-20.pdf
|
Owner
Rudolf Bošnjak - E71RB, Sarajevo, Bosnia and Herzegovina.
RU-20 SA DIGITALNIM DISPLEJEM DIGI
515 TFT
RU-20 SA DIGITALNIM DISPLEJOM ELTING RADIO
RU-20 SA BROJČANIM BIRANJEM FREKVENCIJE
ORIGINAL GLAVA JNA
RU-20 HF TRANSCEIVER SA LEĐNIM NOSAČEM OD JNA
RU-20 je bivša HF/SSB radio stanica Jugoslavenske
Narodne Armije, proizvedena u tvornici RIZ Zagreb (bivša Jugoslavija)
sa licencom Rockwell Collins iz Kanade (originalna oznaka Collins
modela je PRC-515) za borbenu upotrebu.
Oprema radi u opsegu od 2 do 30 MHz sa razmakom
od 100 Hz. Odabir se vrši pomoću dekadnih prekidača koji kontrolišu
sintisajzer. Režimi rada: SSB (LSB, USB), AM i CW.
Izlazna snaga predajnika od 20 W PEP, koja radi u
žičanoj anteni, daje RU-20 domet komunikacije na zemljinim talasima
veći od 20 km dnevno u normalnim uslovima.
RU-20 je pogodna za upotrebu kao zemaljska
stanica, koja radi sa statičnim antenama za zemljane talase ili
nebeske talase. Radom sa dipol antenom može se dostići komunikacija kroz
nebeske talase sa dometom od 50 do 2000 km ili više. Ovaj domet je
dijelom posljedica visokokvalitetnog prijemnika i visokoefikasne
ugrađene jedinice za automatsko podešavanje antene, koja je
integralna sa jedinicom predajnika/prijemnika. Radio se nosi na
leđima operatera. Napaja se punjivim NiCd baterijama od 25,2 V/1,8
Ah.
----------------------------
RU-20 WITH DIGITAL DISPLAY DIGI 515 TFT
RU-20 WITH DIGITAL DISPLAY ELTING RADIO

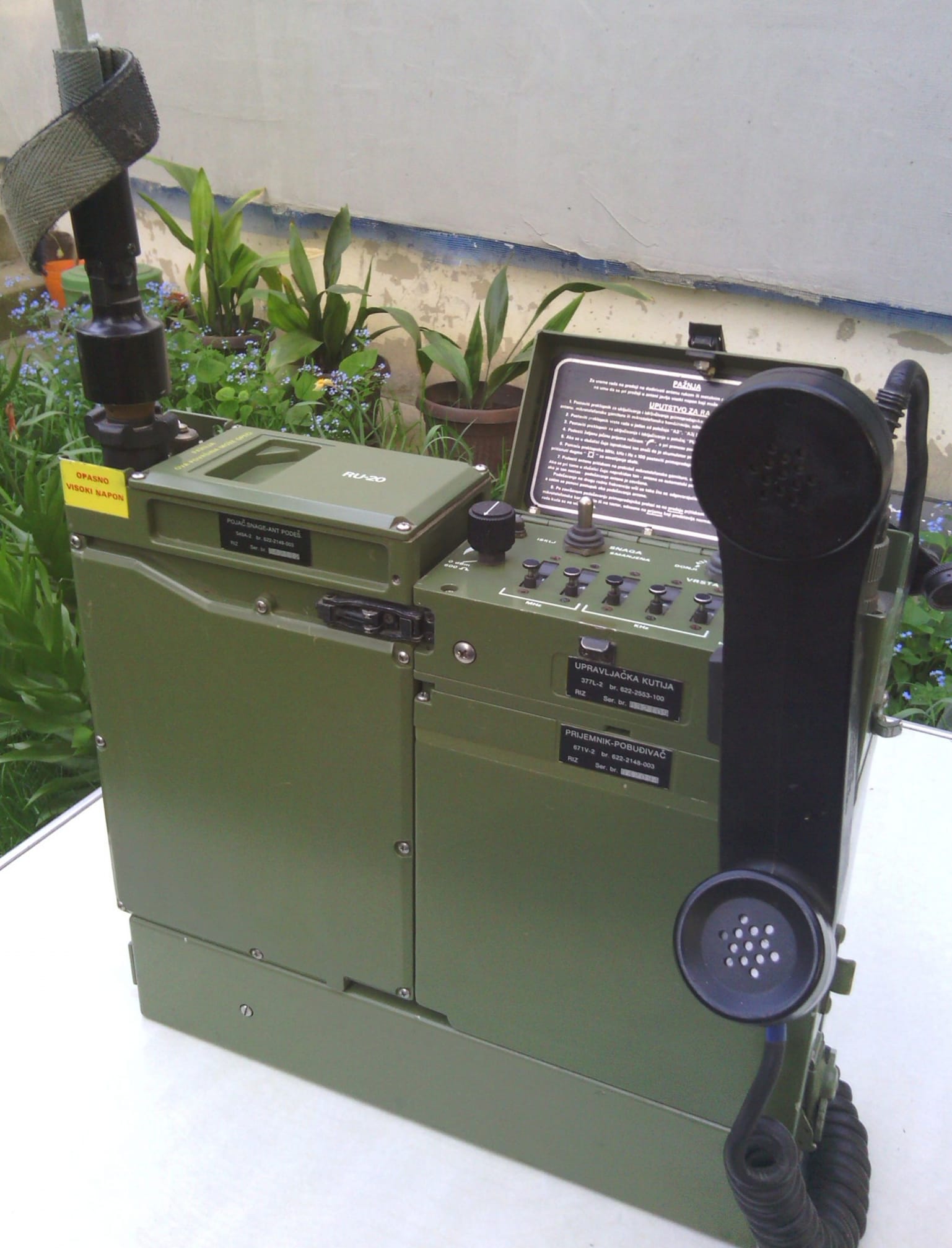

RU-20 WITH NUMERICAL FREQUENCY SELECTION ORIGINAL JNA HEAD

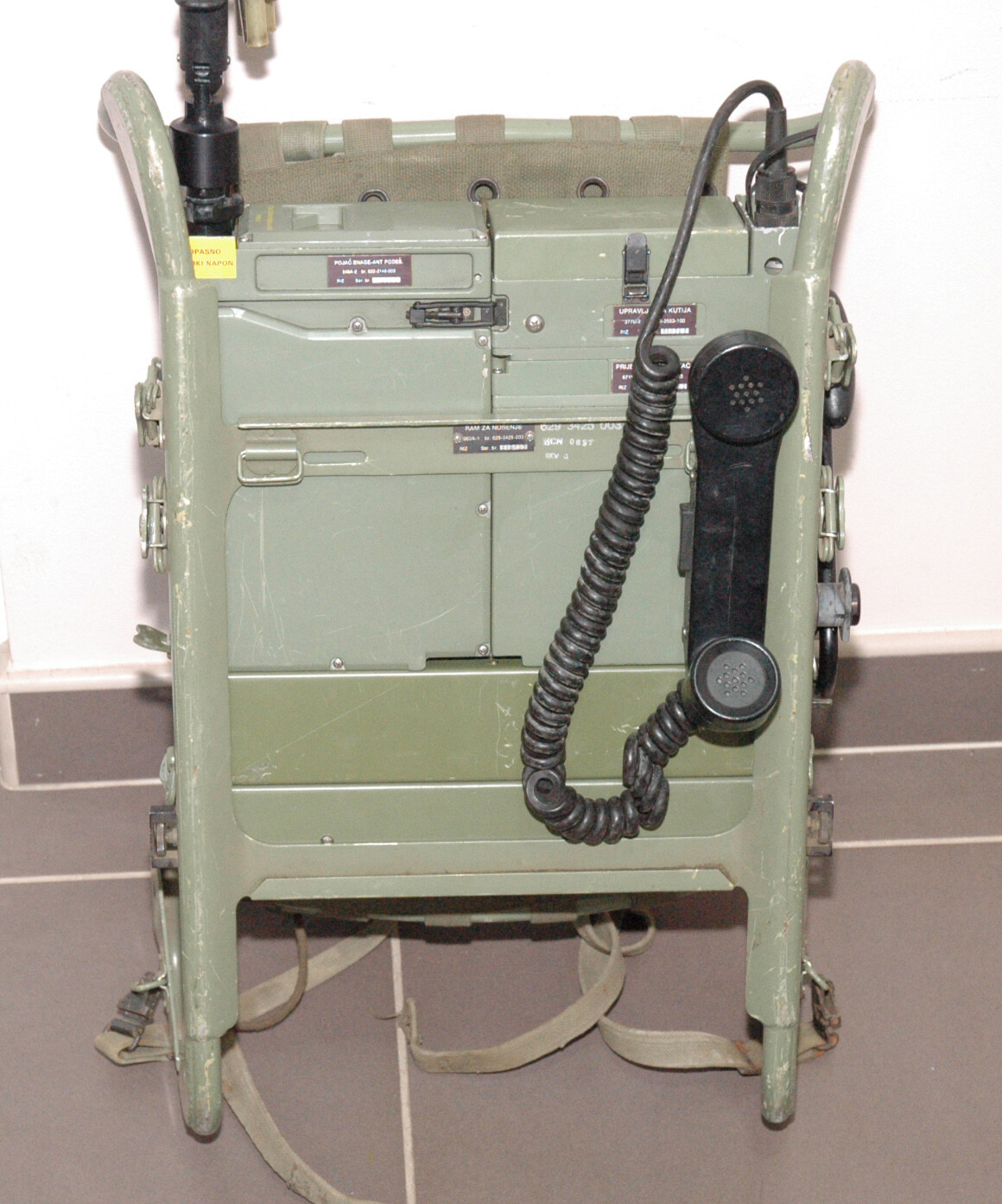

RU-20 HF TRANSCEIVER WITH BACK CARRIER BY JNA
The RU-20 is a former HF/SSB radio station of the
Yugoslav People's Army, manufactured at the RIZ Zagreb factory
(former Yugoslavia) under license from Rockwell Collins of Canada
(the original Collins model designation is PRC-515) for combat use.
The equipment operates in the range from 2 to 30
MHz with a spacing of 100 Hz. Selection is made using decade
switches that control the synthesizer. Operating modes: SSB (LSB,
USB), AM and CW.
The transmitter output power of 20 W PEP,
operating in a wire antenna, gives the RU-20 a communication range
on ground waves of more than 20 km per day under normal conditions.
The RU-20 is suitable for use as a ground
station, operating with static ground wave or sky wave antennas. By
operating with a dipole, communication through sky waves with a
range of 50 to 2000 km or more can be achieved. This range is partly
due to the high quality receiver and the highly efficient built-in
automatic antenna tuning unit, which is integral with the
transmitter/receiver unit. The radio is worn on the operator's back.
It is powered by 25.2 V/1.8 Ah rechargeable NiCd batteries.
The equipment and accessories are supplied in
very good condition, tested and operational.
A transmitter output power of 20 W PEP working
into a whip antenna gives the RU-20 a ground-wave communications
range in excess of 20 km by day under normal conditions.
|
