Palstar DL5K 5000 Watt Dummy Loads

Palstar DL5K 5000 Watt Dummy Loads represent the next generation of high-power dummy loads!

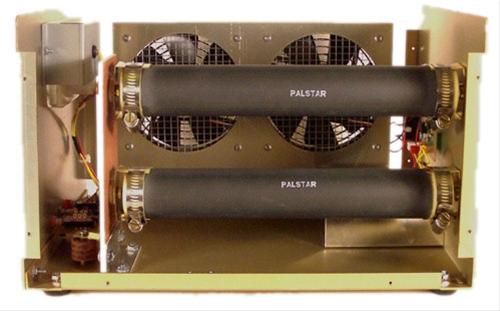

Like its predecessor, the DL2K, the DL5K was born out of the need for a dummy load that allows for more time to tune your amp at high power. Most dummy loads don't have the real-world power load capability needed by Ham operators who run high-power amplifiers. The "Next-Generation" Palstar DL5K Dummy Loads can handle a full 5,000 watts for up to a half a minute and 1,000 watts continuously. Palstar DL5K dummy load loads have thermostatically-controlled dual fan cooling, so the fans only run when needed. They utilize solid ceramic resistive elements that are non-inductive and very resistant to overload, so they may be used at high temperatures.

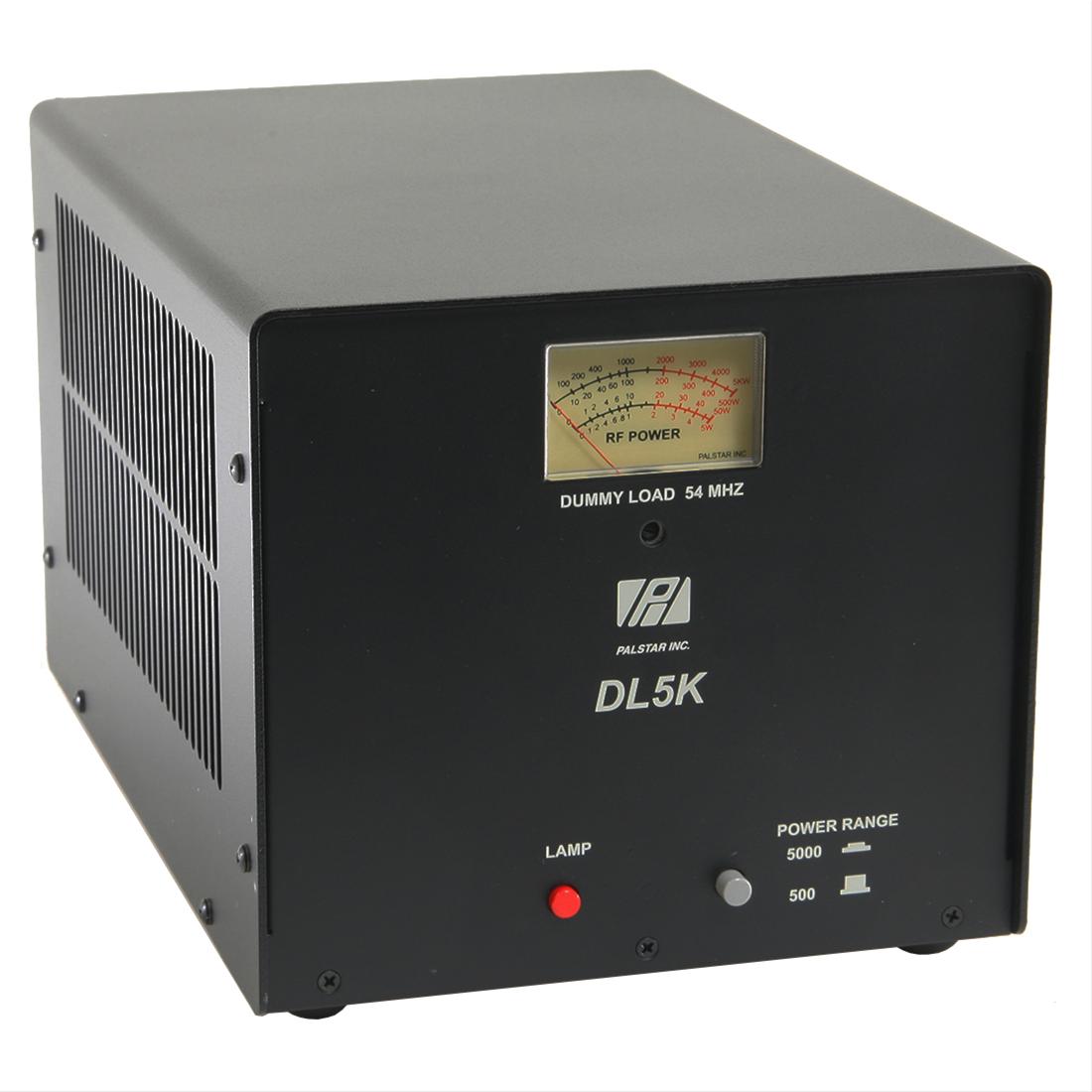

DL5K dummy loads have a built-in backlit meter with two power ranges, 0-500 watts and 0-5,000 watts.

Here are the Palstar DL5K 5000 Watt Dummy Load Specifications:

-- Frequency Range: DC to 54 MHz
-- Power Dissipation: 1,000 watts continuous (see chart)
-- Maximum Power Rating: 5,000 watts CW, 1 minute maximum; single tone key down, 30 seconds
-- Cooling: Dual 160 cfm thermostatically controlled fans
-- Impedance: 55 ohms +0/-10% with heating
-- SWR: < 1.2:1 to 54 MHz
-- Metering: Internal wattmeter with analog meter
-- Metering Ranges: 500 watts LOW and 5,000 watts HIGH
-- Input Connector: SO-239 (UHF female)
-- Power: 12 Vdc at 1.6 Ampere, 3-pin Amphenol DC connector and power cable included
Finish: Top cover is powdercoated

Click above photo to see a larger photo.
