Oscilloscope Tektronix 314

Owner   Rudolf  Bošnjak  - E71RB, Sarajevo, Bosnia and Herzegovina.

The Tektronix 314 is a portable, dual-trace, 10 MHz storage oscilloscope with a bandwidth from DC to 10 MHz. Key specifications include a vertical range of 1 mV/Div to 10 V/Div and a horizontal sweep from 5 s/Div to 1 µs/Div, expandable with a 10X magnifier to 0.1 µs/Div. It features bistable storage with an enhanced mode for faster writing speeds and can operate on AC line power, +12 VDC, or +24 VDC.

• Type: Portable, dual-trace, storage oscilloscope
• Bandwidth: DC to 10 MHz
• Storage: Bistable storage with up to 4 hours of viewing time and a fast writing speed in enhanced mode
• Power: Operates from AC line, +12 VDC, or +24 VDC
• Weight: 10.5 lbs

• Deflection: 1 mV/Div to 10 V/Div (1-2-5 sequence)
• Input Impedance: 1 MΩ // 47 pF
• Integrate Mode: Included for intensifying fast, low-repetition rate signals

• Time Base: 1 µs/Div to 5 s/Div (1-2-5 sequence)
• Sweep Magnifier: 10X magnifier to increase the fastest sweep rate to 0.1 µs/Div
• Sweep Modes: AUTO, NORM, and SINGLE SWP
• External Horizontal Input: For X-Y operation, provides deflection factors from 20 mV to 2 V/Div

• Trigger Source: CH 1, CH 2, EXT, LINE, or INT (internal)
• Trigger Slope: Positive or negative slope selection
• External Trigger Attenuator: 10X or 1X attenuation for external signals

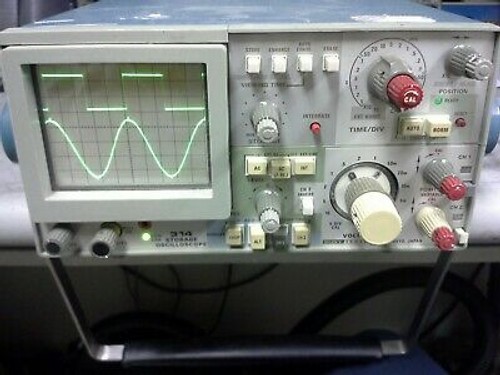

Click above photo to see a larger photo.
