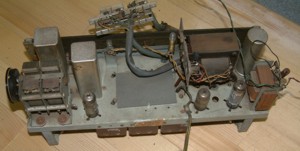

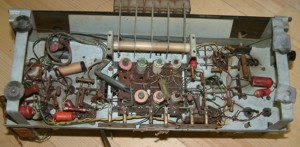

MW Transmitter design from MW radio receiver

Ei Niš RR 340

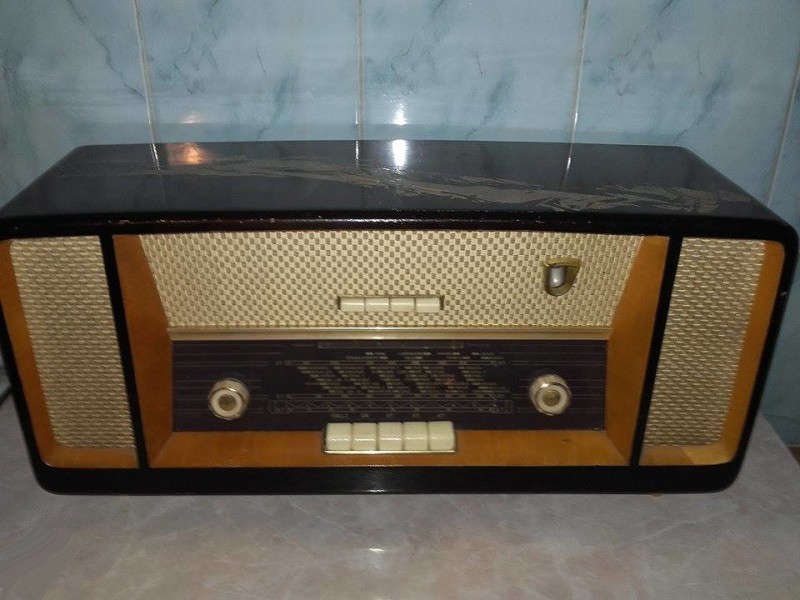

The RR 340 radio (Radio Rentgen Zavodi Niš, then Elektroindustrija Niš) is larger in size, rectangular in shape and has a wooden casing. On the front right and left sides there are speakers covered with light beige mesh fabric. In the middle of the front there are four white buttons, and below them is a scale with frequencies and inscriptions of individual places - stations. Below these are five more white buttons. On the back of the radio there is an electrical cable, detailed information about the model and a warning about the electrical voltage.

Name Radio RR 340 Type of object Time of creation 1950-1960
Materials metal - metal, wood, plastic, fabric
Dimensions - 24.5 cm; 20.5 cm; 59.5 cm;

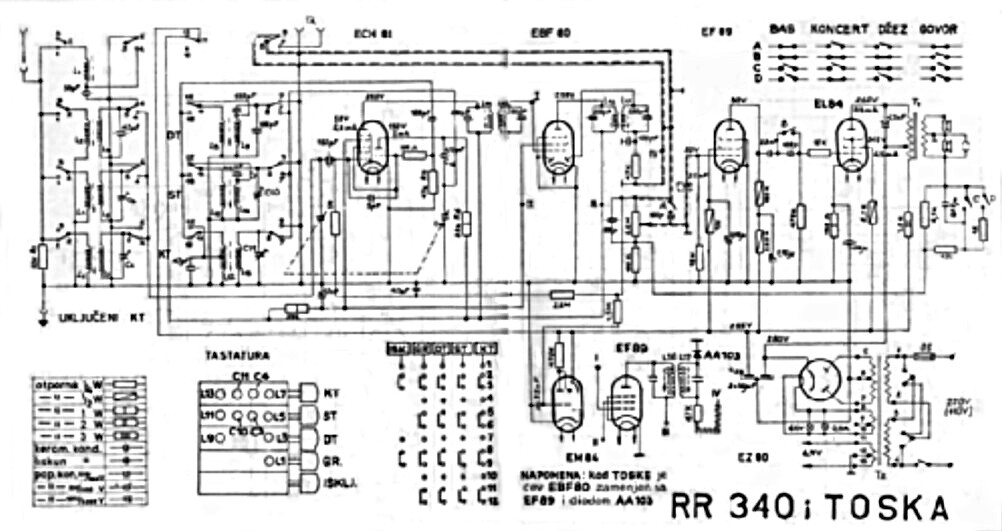

TOSKA ELECTRONIC DIAGRAM

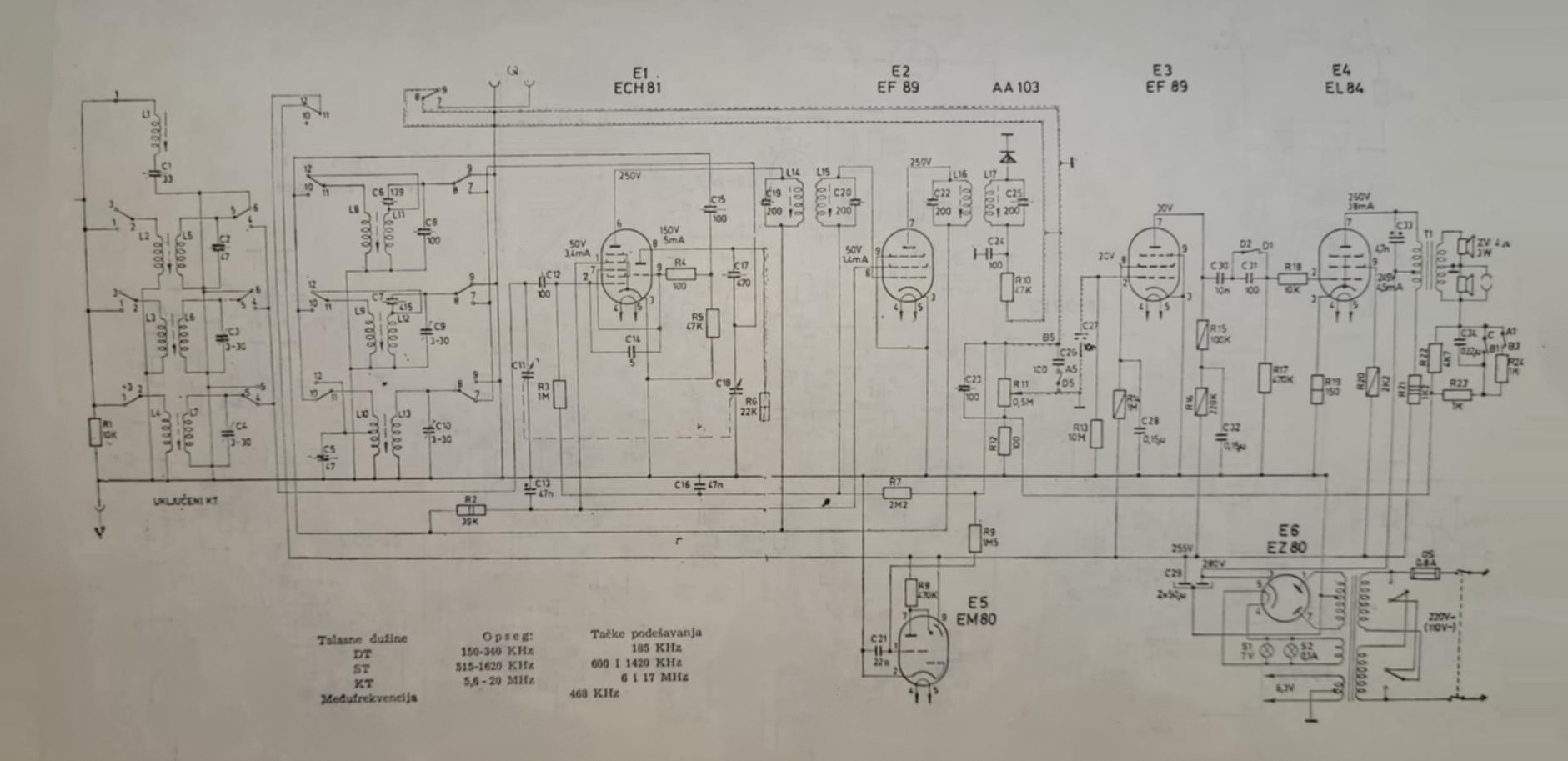

RR 340 ELECTRONIC DIAGRAM

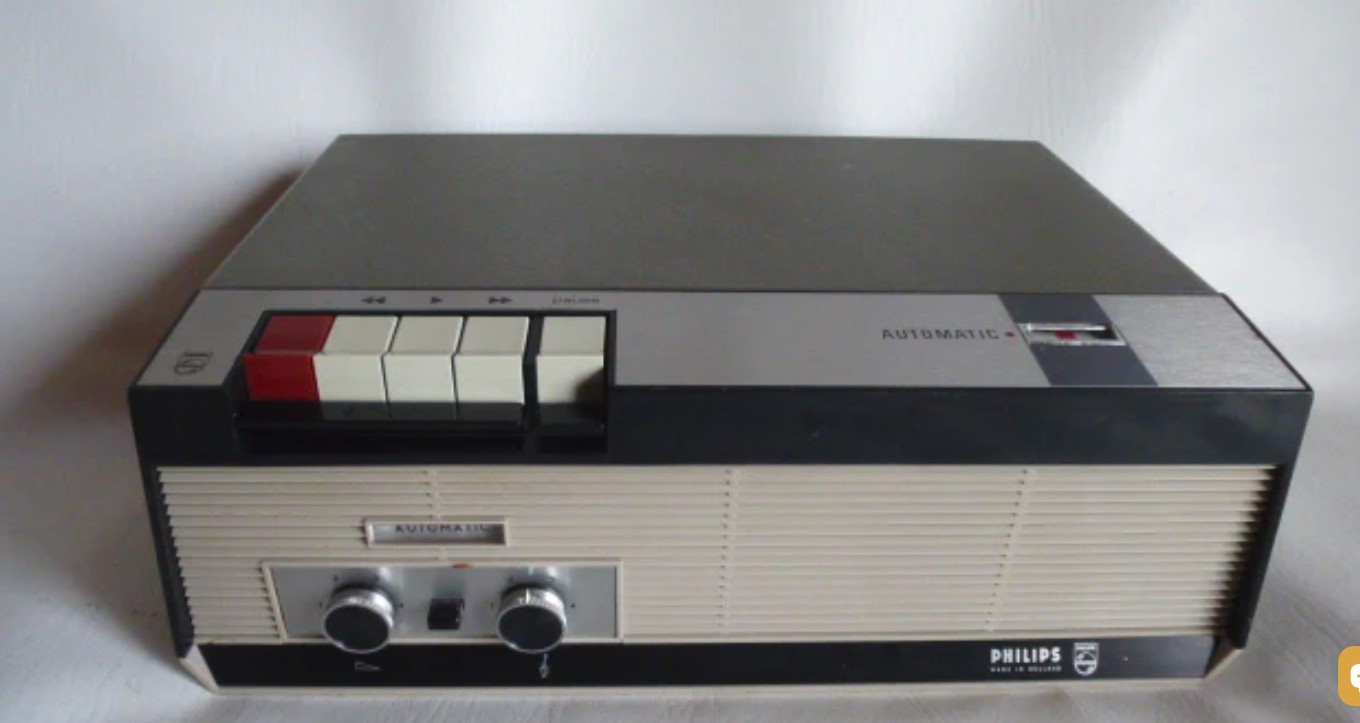

TAPE RECORDER I USED TO PLAY RECORDED MUSIC ON MW TRANSMITTER WITH PHILIPS N4302 TAPE RECORDER

 Interesting web links DO IT YOURSELF

http://www.dogstar.dantimax.dk/tubestuf/amtx.htm

http://www.dogstar.dantimax.dk/tubestuf/index.htm

Owner  Rudolf  Bošnjak  - YU4VOT then T94RB then E71RB, Sarajevo, Bosnia and Herzegovina.
