LA-2035R GaAs VHF LINEAR AMPLIFIER 144MHz
Owner Rudolf Bošnjak - E71RB, Sarajevo, Bosnia and Herzegovina...
SPECIFICATIONS
| Type: | Amateur VHF alinear amplifier | ||
| Frequency range / band(s): | 144-148 MHz (2 m) | ||
| Output power: | 30 W | ||
| Drive power: | 1-5 W | ||
| Power supply: | 13.8 VDC (Fixed power cord) | ||
| Current drain / power consumption: | Max 5 A | ||
| Impedance / connectors: | 50 ohm / Two SO-239 | ||
| Dimensions (W*H*D): | 100*35*140 mm (3.94*1.38*5.51") | ||
| Weight: | 550 g (1.21 lb) | ||
| Manufactured: | Japan, 198x-198x (Discontinued) | ||
| Other: | Built-in 15 dB preamp. | ||
| Related documents: | User manual (2.7 MB) | ||
| Modifications and fixes: | |||
| Reviews: | |||
| Options / Accessories: |
|

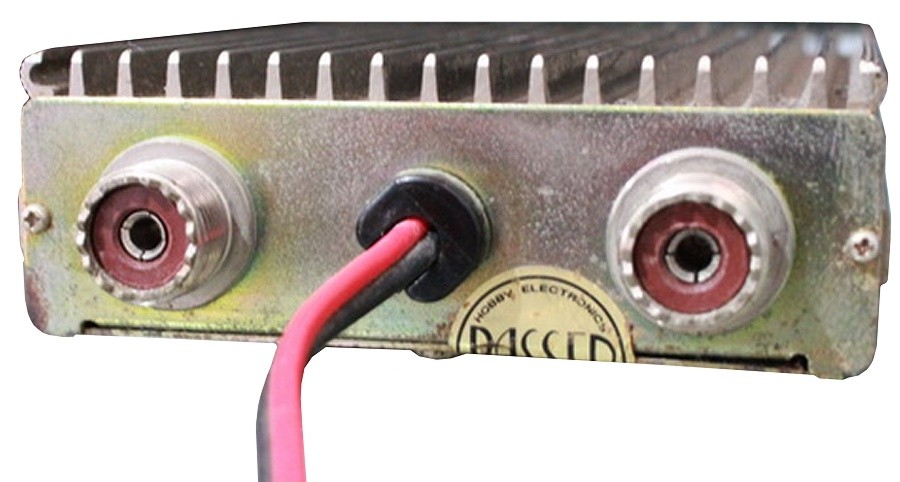

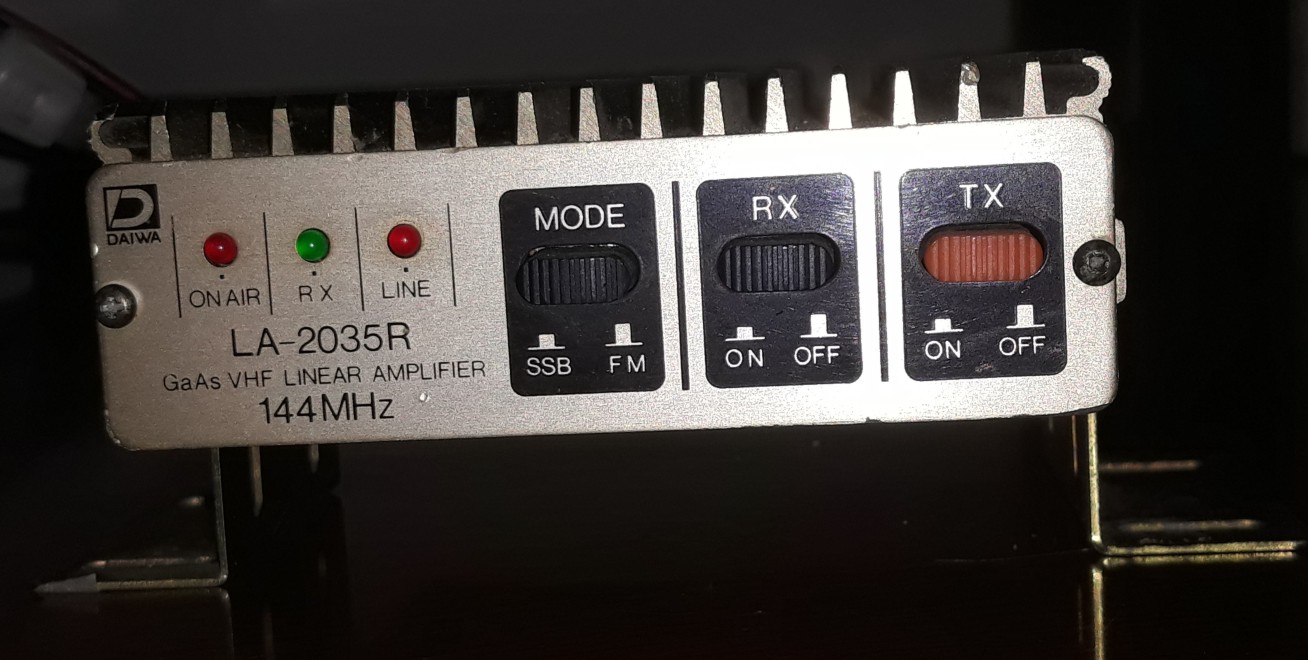

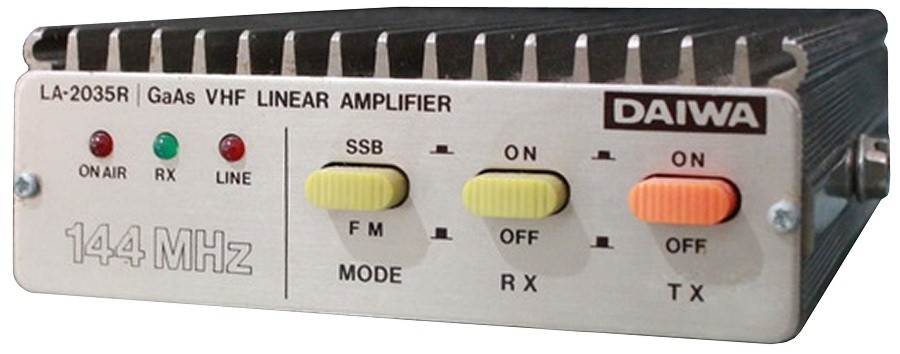

Click above photo to see a larger photo.
