Kenwood TM - 241E VHF TRANSCEIVER
RX: 118-174 / 300-470 / 800-1000 MHz
Owner Rudolf Bošnjak - E71RB, Sarajevo, Bosnia and Herzegovina...
SPECIFICATIONS
| GENERAL | |||||||||
| Type: | Amateur VHF transceiver | ||||||||
| Frequency range: | USA TX: 144-148 MHz RX: 118-174 / 300-470 / 800-1000 MHz |
||||||||
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 KHz | ||||||||
| Frequency stability: | ±10 ppm @-20 to +60°C (-4 to +140°F) | ||||||||
| Mode: | TX: FM RX: AM / FM |
||||||||
| Channels / memory management: | 40 regular 1 call RAM storage with lithium battery backup |
||||||||
| Repeater shift / offset: | ±600 KHz (0 to 40 MHz selectable in 5 KHz steps) | ||||||||
| Power supply: | 13.8 VDC ±15% | ||||||||
| Current drain / power consumption: | RX: Max 600 mA TX: Max 11 A |
||||||||
| Antenna impedance / connector: | 50 ohm / SO-239 (On pigtail) | ||||||||
| Dimensions (W*H*D): | 140*40*160 mm (5.51*1.58*6.3") | ||||||||
| Weight: | 1 Kg (2.2 lb) | ||||||||
| Other features: | CTCSS/PL encoder. 1K2/9K6 packet jack. DTSS. Dimmer. | ||||||||
| RECEIVER SECTION | |||||||||
| Receiver system: | Double conversion superheterodyne 1st IF: 45.05 MHz 2nd IF: 455 KHz |
||||||||
| Sensitivity: | 0.16 uV (12 dB SINAD) | ||||||||
| Selectivity: | 12 KHz (-6 dB) 28 KHz (-60 dB) |
||||||||
| Image rejection: | |||||||||
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm | ||||||||
| External speaker connector: | 3.5 mm, 8 ohm | ||||||||
| TRANSMITTER SECTION | |||||||||
| RF output power: |
|
||||||||
| Modulation system: | Reactance | ||||||||
| Max FM deviation (Factory set): | ±5 KHz | ||||||||
| Spurious emissions: | Better than -60 dB | ||||||||
| Microphone impedance / connector: | 600 ohm / 8-pin (Modular) | ||||||||
| Microphone input level: | ? mV |

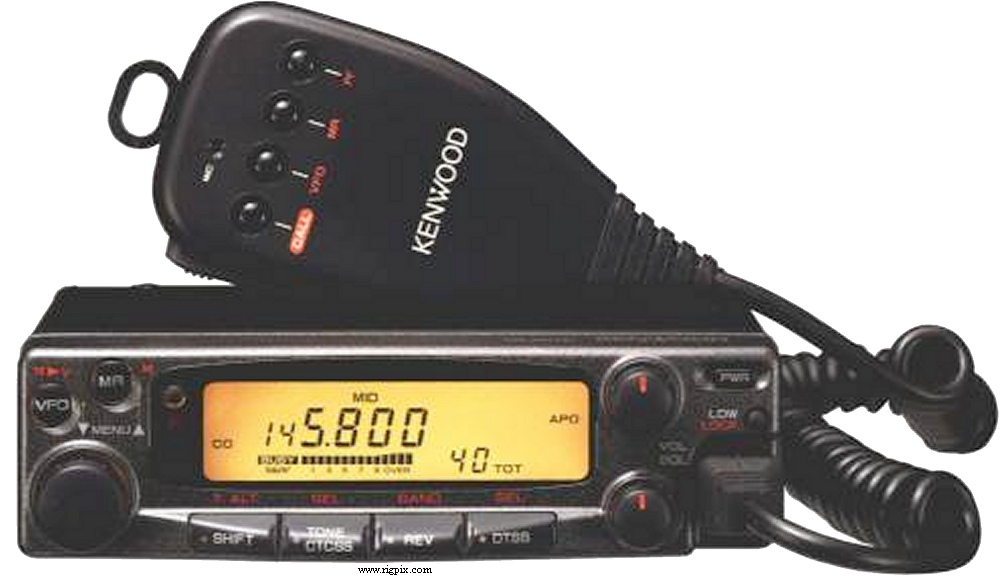

Click above photo to see a larger photo.
