ICOM IC-PS15 POWER SUPPLY





Owner   Rudolf  Bošnjak  - E71RB, Sarajevo, Bosnia and Herzegovina...

SPECIFICATIONS

Type: Linear regulated power supply
Input voltage: 100 / 117 / 200 / 240 VAC
Output voltage: 13.8 VDC
Output current: Max 20 A (50% duty cycle)
Ripple:
Voltage fluctuation: Max ±?% of input voltage
Efficiency:
Dimensions (W*H*D): 180*110*290 mm (7.1*4.33*11.4")
Weight: 8.2 Kg (18.1 lb)
Manufactured: Japan, 19xx-19xx (Discontinued)
Additional info: New price 1989 in the US: $159.95.
Related documents:
Modifications and fixes:
Reviews:

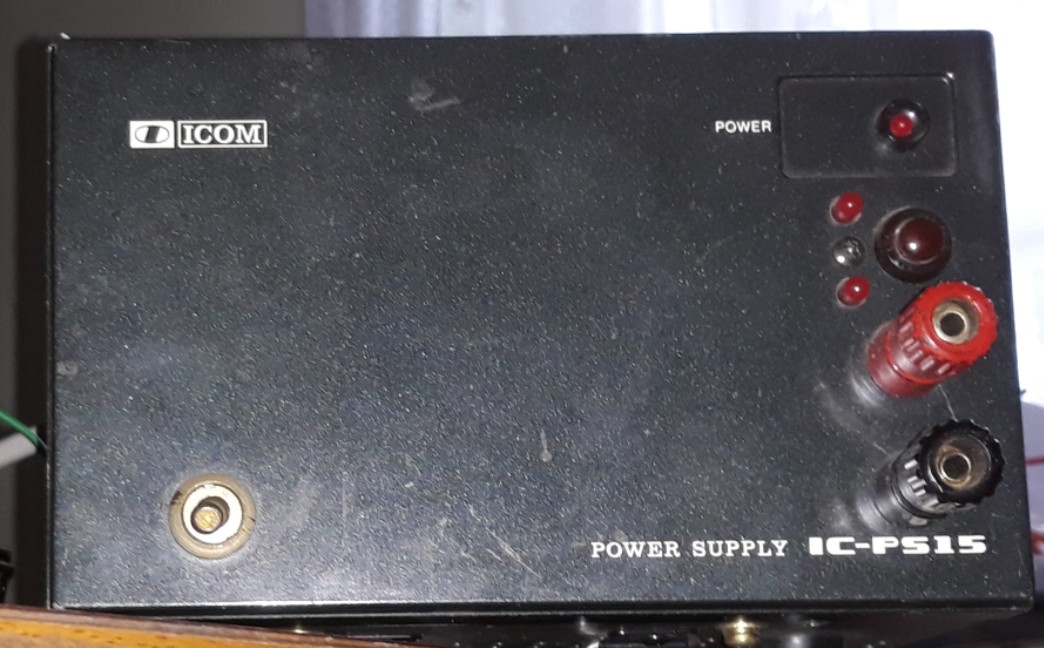

Click above photo to see a larger photo.
