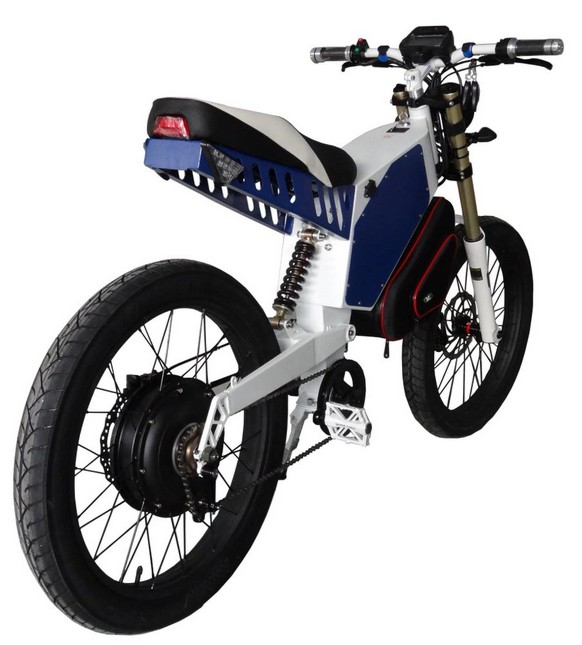

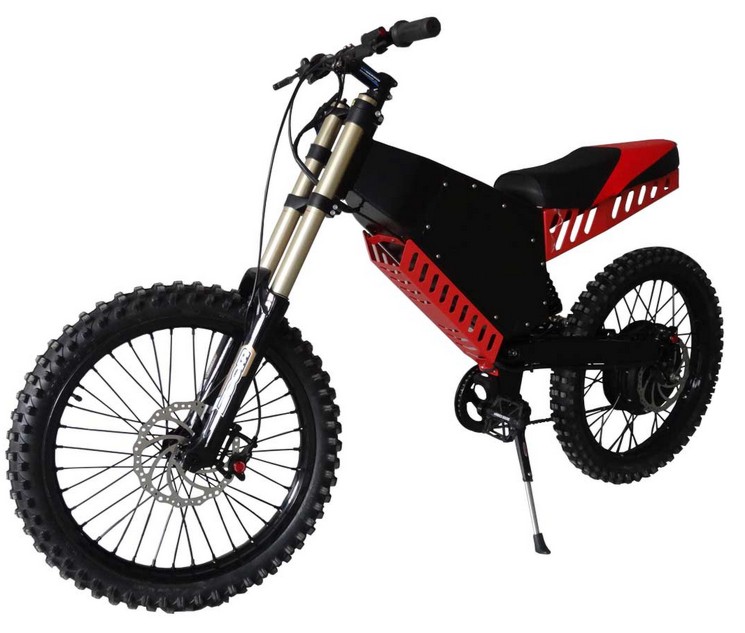

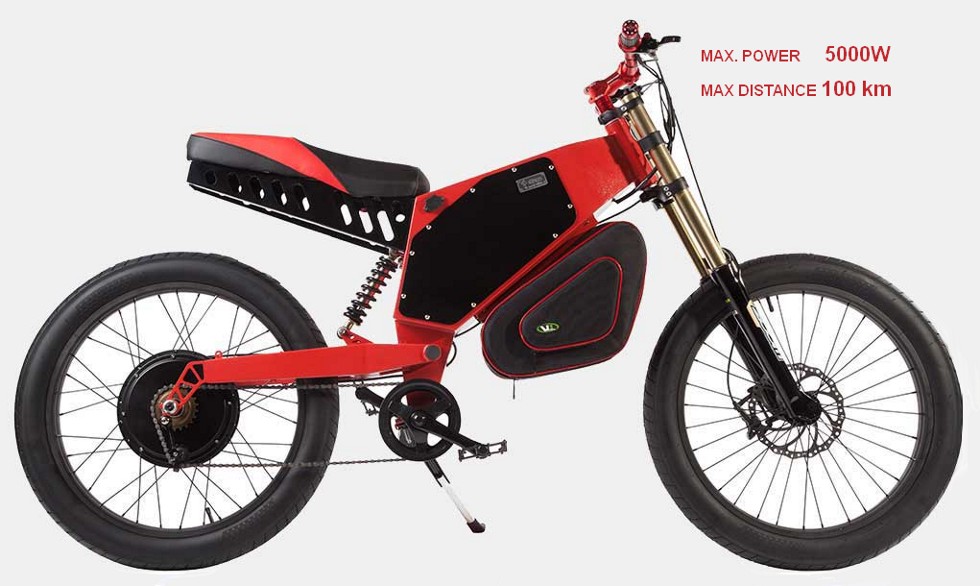

OVO JE JEDINSTVEN ELEKTRIČNI BICIKL ZA VOŽNJU NA PLANINAMA

BEV - ELECTRIC BIKE - ELEKTRICNI  BICIKL

THIS IS UNIQUE ELECTRIC BIKE FOR RIDING ON MOUNTAIN



BEV - ELECTRIC BIKE - ELEKTRICNI  BICIKL

Product Description

The best quality mountain bike for long trip distance. Under the bike frame - is the big luggage bag. Controller - Kelly support charging function when you use brake. Maximum speed can be changed by programmer by computer. Special Frame, Front folk and rear shock - provide safety your driving in the hard condition sach as mountain, stone road and so on, also this bike very comfortable to use in the city. We can also install rear luggage bag.





Product Detail

  • Running Distance: >100
  • Motor: Brushless
  • Brake: Front and Rear Brake Are Hydraulic with 8" Disk
  • Max Speed: 100 Km/H (Can Be Limited)
  • Battery Type: Lithium Battery
  • Frame Material: Steel
  • Voltage of Battery: 72V
  • Power: 5000W
  • Maximum Loading Capacity: ≥120kg
  • Wheel Hub: Alloy Hubs
  • Wheel Size: 24"
  • Folded: Unfolded
  • Charging Time: 4-6 Hours (Depend of The Chager)
  • Controller: Kelly

BEV - ELECTRIC BIKE - ELEKTRICNI  BICIKL

https://youtu.be/XFbRiDSJf_E




STANDARD STANDARD OPTION

OPTION

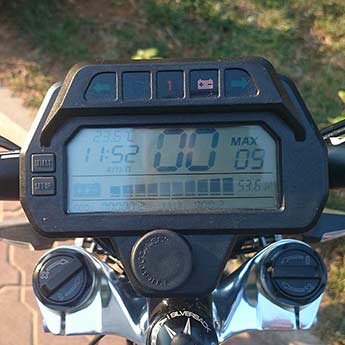

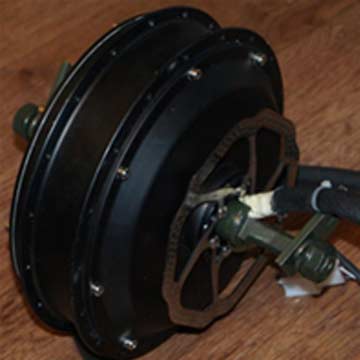

5kW HUB MOTOR LCD SPEEDMETER GSM PHONE HOLDER

SOLAR CHARGER

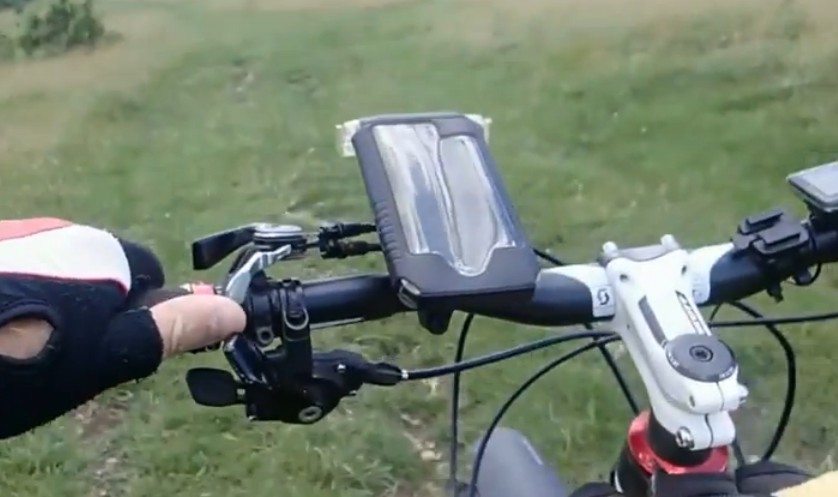

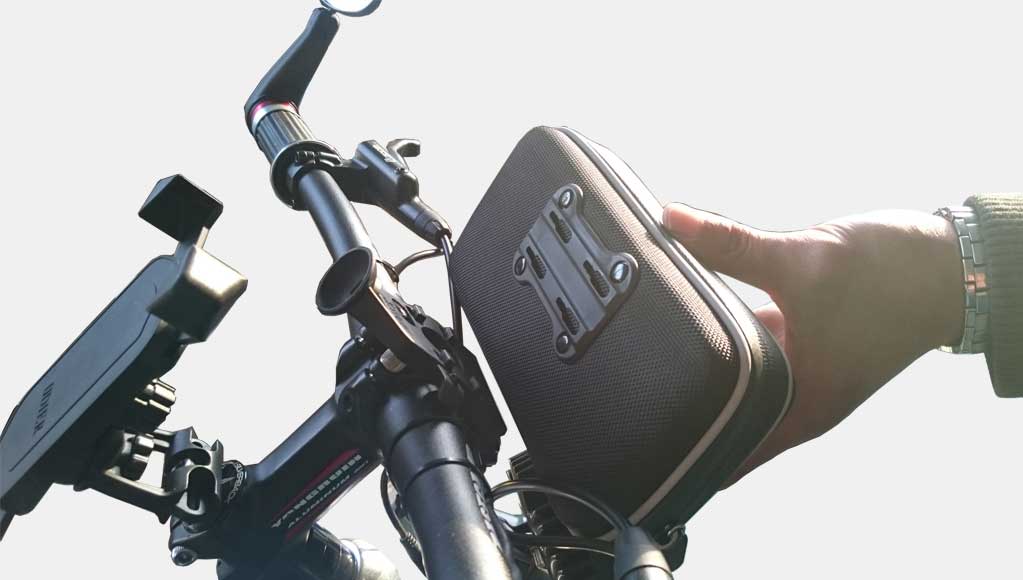

BEV ELEKTRICNI BICIKL DRZAC TELEFONA

BEV ELEKTRICNI BICIKL DRZAC TELEFONA

STANDARD STANDARD OPTION

OPTION

CONTROLLER CHARGER FRONT FORK DNM USD-8 DNM BURNER RCP2 MTB/Trail/Cyclocross Bike Rear Shock

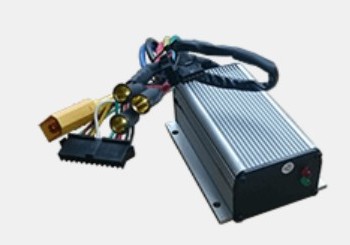

BEV ELEKTRICNI BICIKL CONTROLLER

BEV ELEKTRICNI BICIKL PUNJAC

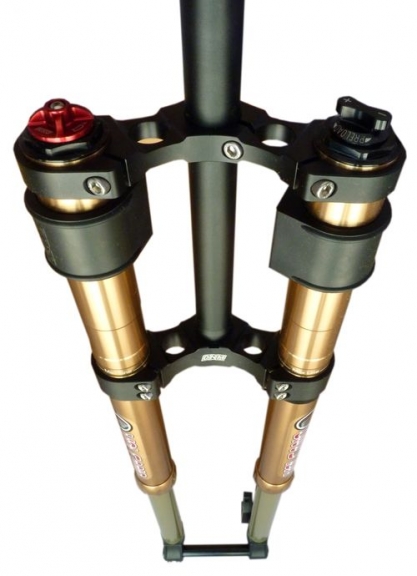

FRONT FORK DNM USD-8

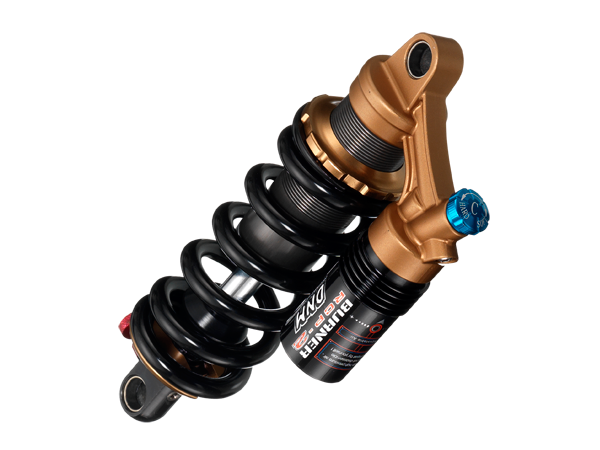

The DNM BURNER RCP2 rear shock is a piggyback system for MTB/Trail/Cyclocross bikes. It is fitted with preload and adjustable high-pressure systems this make it ideal for all types of terrain. Made from dark hard anodized AL 7075 Alloy makes it both extremely durable and strong. Available in a variety of base length options either 190mm x 51mm, 200mm x 56mm, 210mm x 61mm, 220mm x 66mm or 240mmx 76mm. With a hight quality surface finish, this piggyback style rear shock is a great product from the DNM brand name.

STANDARD

STANDARD

OPTION

FRON LIGHT

72V 30Ah BATTERY

FRONT FORK DNM USD-8

DNM BURNER RCP2 is Bicycle Shocks for mounatin bike dowhil Suspension parts DH FR AM MTB shocks.

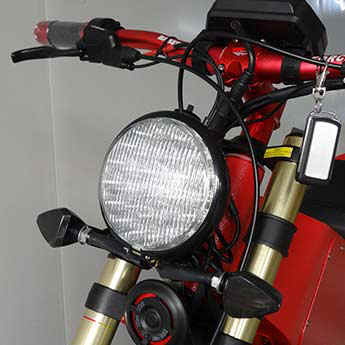

BEV ELEKTRICNI BICIKL PREDNJE SVJETLO

BEV ELEKTRICNI BICIKL 72V 30Ah BATTERY

BEV ELEKTRICNI BICIKL FRONT FORK DNM USD-8

BEV ELEKTRICNI BICIKL SCHOCK DNM BURNER-RCP2

Specifications:
  • Volatge: 72V
  • Type: Lithium (LiNiCoMN2O4)
  • Capacity: 30Ah
  • Continuos currenet: 60A
  • Max current: 80A
  • Over current: 80A
  • Vover volatge: 84V
  • Low volatge: 56V
  • Cnarge method CC-CV
  • Cahrge current 1C Max.
  • Dimensions: 310mm x 160mm x 160mm
  • Weight: 14.3kg
Specifications:
  • Weight3.5 KG ( 7.72 lb)
  • Damping3-system
    Alex to crown height750 mm ( 29.6 inch )
  • Travel203 mm ( 8 inch)
  • AdjustmentsPreload / Rebound / Adjust High Pressure
  • InformationReplaceable and individual cartridge
    20 mm ( 0.79 inch ) AL-7075 thru-axle design.
  • Stanchion35 mm (1.38 inch ) AL-7075, Dark Hard Anodized
    Steerer tube28.6 mm (1.13 inch) AL-7075
  • CNC machinedAL-6061 dropout and crowns
    Coil Spring
  • Barke typeDisc brakes ( Post mount)
  • Riding styleDH / FR
Specifications:
  • Make: DNM
  • Model: MTB/Trail/Cyclocross Bike Rear Shock
  • Model number: BURNER RCP2
  • Body eye-eye length options: 190mm x 51mm, 200mm x 56mm, 210mm x 61mm, 220mm x 66mm and 240mm x 76mm.
  • Body OD: 32mm (1.26")
  • Spring: Coil spring
  • Damper: Four system
  • Adjustment: Rebound/Compression/Preload/Adjustable High Presure
  • Intended use: AM/FR/DH
  • Weight: 945g for the 240mm x 76mm option 790g for the 190mm x 51mm option
