PRODAJEM - FOR SALE KONTAKT TELEFON OVDJE

Input 96V DC from Lithium Ion battery

More data about Opel Corsa A - BEV 2 - Boschnjak Electric Vehicle  SIEMENS -   96 VOLT, BATTERY SYSTEM

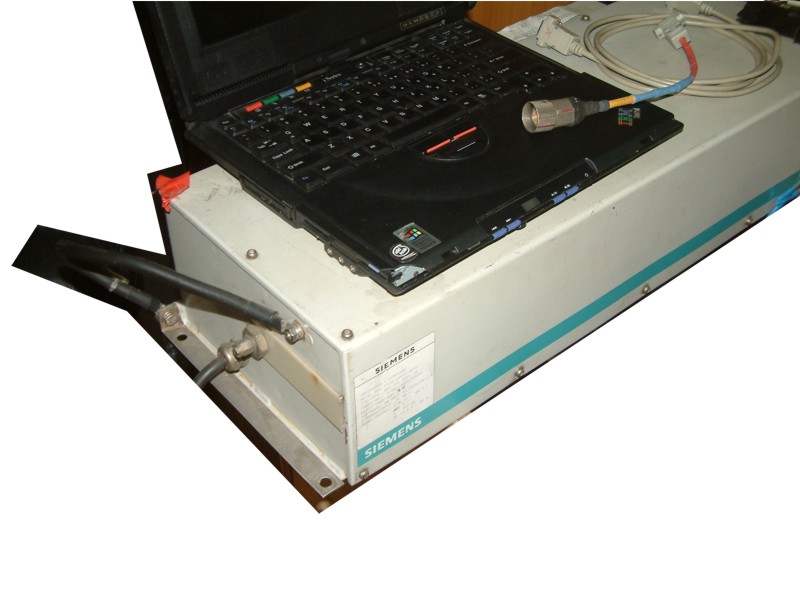

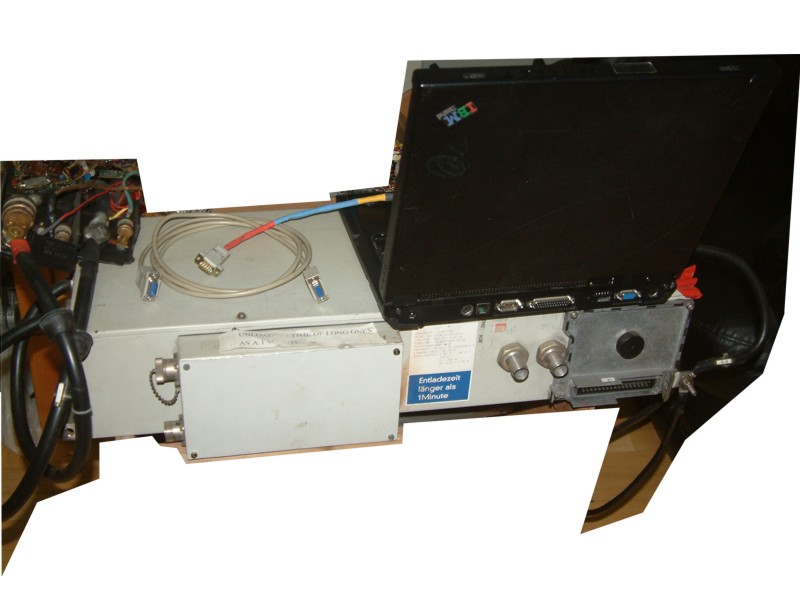

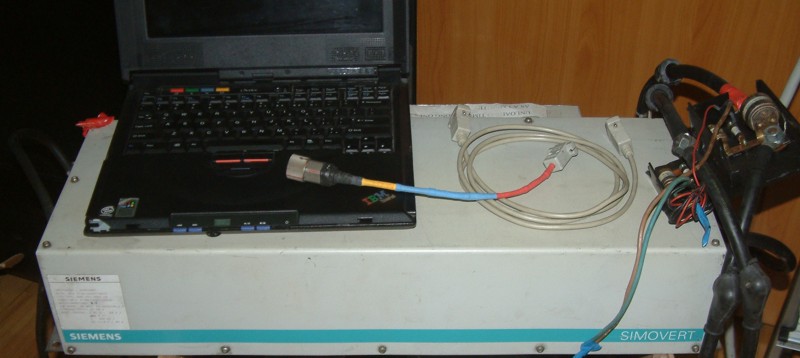

INVERTER Output 100kW, 3 phase output,

to 96V DC with serial cable and IBM Think Pad laptop for programming.

PRICE 3.500 Euro or 7000KM - BAM Bosnia Mark

http://www.pik.ba/artikal/6876203/siemens-100kw-inverter-pretvarac/

ULAZNI NAPON JEDNOSMJERNI DO 110V.

KORIŠTEN JE KAO RAZVOJNI PROTOTIP ZA VOŽNJU DRUGOG BOSANSKOG ELEKTRIČNOG AUTOMOBILA OPEL CORSA A.

U KOMPLETU SE PRODAJE I SISTEM ZA TESTIRANJE U DOS OPERATIVNOM SISTEMU SA SIADIS SOFTVEROM,  TE PC ILI  LAPTOP ZA PROGRAMIRANJE INVERTERA.

SVE O SIEMENS SIMOVERT DUGOM INVERTERU IMATE NA WEB ADRESI
http://www.elektroauto.ba/SALE-PRODAJA/images/INVERTER_6SV1_LONG_BEV.jpg

SVE O SIEMENS SIMOVERT TROFAZNOM MOTORU IMATE NA WEB ADRESI
http://www.elektroauto.ba/SALE-PRODAJA/images/SIEMENS_MOTOR.jpg

INVERTER - PRETVARAČ IMA MOGUĆNOST DA RADI SA OLOVNIM BATERIJAMA ILI LITIJUM ION BATERIJA NAZIVNOG ISTOSMJERNOG NAPONA DO 110V.

INVERTOR RADI DO PADA ISTOSMJERNOG NAPONA BATERIJA DO 80V, TADA AUTOMATIKA ISKLJUČI INVERTER- PRETVARAČ.

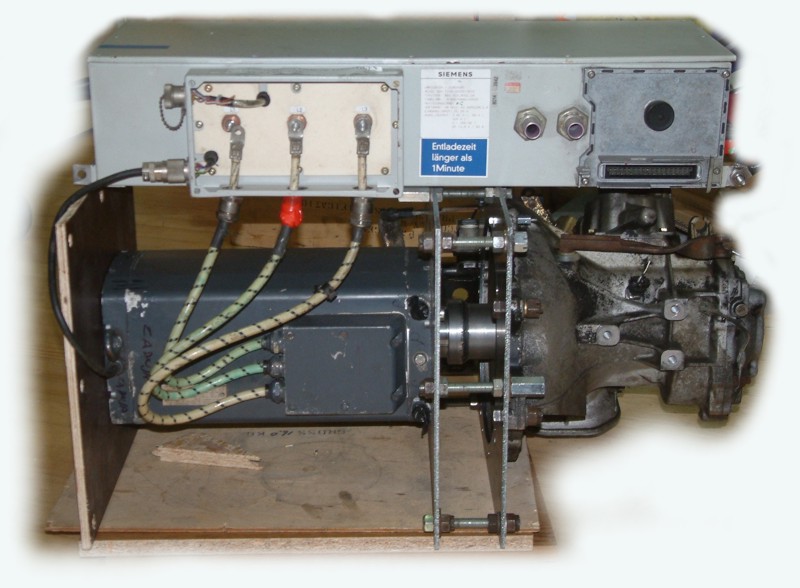

KORIŠETN JE SA SIEMENS TROFAZNIM MOTOROM SNAGE 27kW / 35 KONJSKIH SNAGA I TAJ MOTOR JE UKLJUČEN JE KOMPLET.

TIP TROFAZNOG MOTORA JE Siemens 1FV5104-6WS09-Z 3-Phase AC, MOTOR IMA HLADJENJE SA MJEŠAVINOM VODA/GLIKOL.

OPEL CORSA AUTOMOBIL JE MOGAO VOZITI BRZINOM DO 90 km NA SAT.

BATERIJE KORIŠTENE U PROTOTIPU SU BILE OBIČNE OLOVNE AUTO BATERIJE, 9 BATERIJA OD 12V,   SPOJENIH U SERIJU SA NAZIVNIM UKUPNIM NAPONON DO 110V.

SVE OSTALE INFORMACIJA O DRUGOM BOSANSKOM ELEKTRIČNOM AUTOMOBILU OPEL CORSA A, NA WEB ADRESI

SVE DODATNE INFORMACIJE NA TELEFON 00 387 63 304 403

Input voltage to 110V DC.

System used as a development prototype for the run of the second BOSNIAN electric car OPEL CORSA A.

The kit SALES AND SYSTEM FOR TESTING IN DOS operating system with SIADIS software, and PC or laptop the power inverter.

ALL ABOUT SIEMENS SIMOVERT LONG INVERTER HAVE THE WEB ADDRESS http://www.elektroauto.ba/SALE-PRODAJA/images/INVERTER_6SV1_LONG_BEV.jpg

ALL ABOUT SIEMENS SIMOVERT AC Motors have on the web address http://www.elektroauto.ba/SALE-PRODAJA/images/SIEMENS_MOTOR.jpg

Inverter has an opportunity to work with lead batteries or lithium ion battery rated DC voltage to 110V. INVERTOR TO FALL TO DC voltage battery is 80V, THEN OFF AUTOMATIC INVERTER.

Used with SIEMENS POWER 27kW AC motor / 35 horsepower and that engine IS ON THE SET.

TIP motor Siemens 1FV5104-6WS09-Z 3-Phase AC motor has a cooling with mixture Water / Glycol.

OPEL CORSA car drive at speeds up to 90 km per hour.

BATTERIES USED IN prototypes were no ordinary LEAD-ACID BATTERY AUTO, 9 battery of 12V, combined in series with the nominal total NAPONON to 110V.

All other information about second Bosnian electric car OPEL CORSA A, on the web

INFORMATION ON THE TELEPHONE 00 387 63 304 403
