GO CART CONVERTED TO FULLY ELECTRIC GO CART

ELECTRIC GOCART LOGO
BEV - BOSCHNJAK ELEKTRIČNA VOZILA BEV - BOSCHNJAK ELECTRIC VEHICLES
Tehnička pomoć za ovaj električni karting Technical support for this electric go-cart

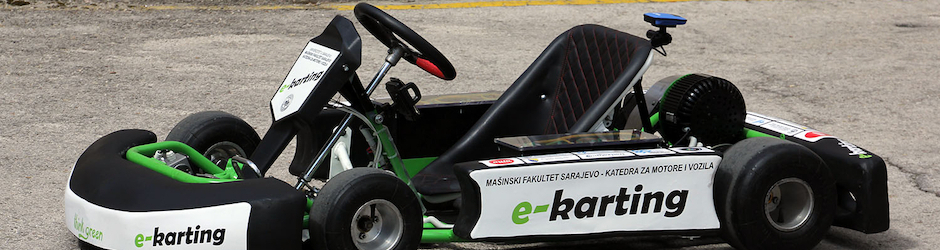

ELEKTRICNI KARTING MODEL - ELECTRIC GO-CART MODEL

http://www.goldenmotor.com/eCar/frame-eCar.htm

PRVI BOSNA i HERCEGOVINA

ELEKTRIČNI KARTING

 FIRST BOSNIA and HERZEGOVINA

ELECTRIC GO-CART VEHICLE
MAŠINSKI FAKULTET SARAJEVO I PROJEKT ELEKTRIČNI KARTING MECHANICAL FACULTY OF SARAJEVO AND  ELECTRIC GO-CART PROJECT
ZAMJENA BENZINSKOG MOTORA SA ELEKTRIČNIM BLDC MOTOROM REPLACEMENT PETROL ENGINE WITH BLDC ELECTRIC MOTOR

PETROL GO CART OLD
BENZIN KARTING STARA FOTGRAFIJA PETROL GO CART OLD IMAGE

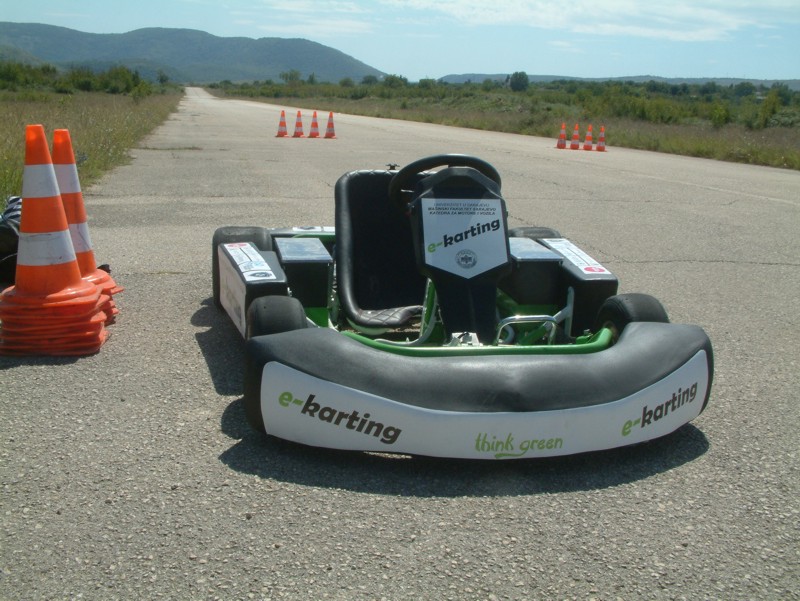

ELEKTRIČNI KARTING BRZINSKI TEST ELECTRIC GO-CART SPEED TEST


TEST RADJEN NA SPOREDNOJ PISTI U MOSTARU.

TEST DONE ON AIR STRIP IN MOSTAR.

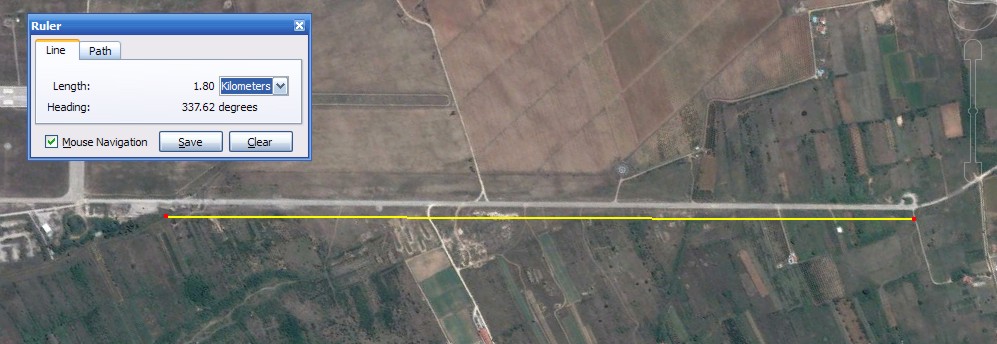

AIR STRIP MOSTAR - PISTA MOSTAR
Google Earth kmz file
ELEKTRIČNI KARTING
TEST VOŽNJA UBRZANJE
VOZAČ MIRZA SMAILBEGOVIĆ		 ELECTRIC GO-CART
TEST ACCELERATION
DRIVER MIRZA SMAILBEGOVIĆ

Dailymotion VIDEO


ELEKTRIČNI KARTING UBRZANJE  -  ELECTRIC GO-CART ACCELERATION by boran-pikula

VIDEO LINK OVDJE - HERE http://dai.ly/x24qifo



MAKSIMALNA BRZINA ZA OVAJ ELEKTRIČNI KARTING BILA JE 87 KILOMETER NA SAT i Broj Obrtaja Motora je bio 5800.

MAXIMAL SPEED FOR THIS ELECTRIC GO-CART WAS 87 KILOMETER PER HOUR and RPM 5800.

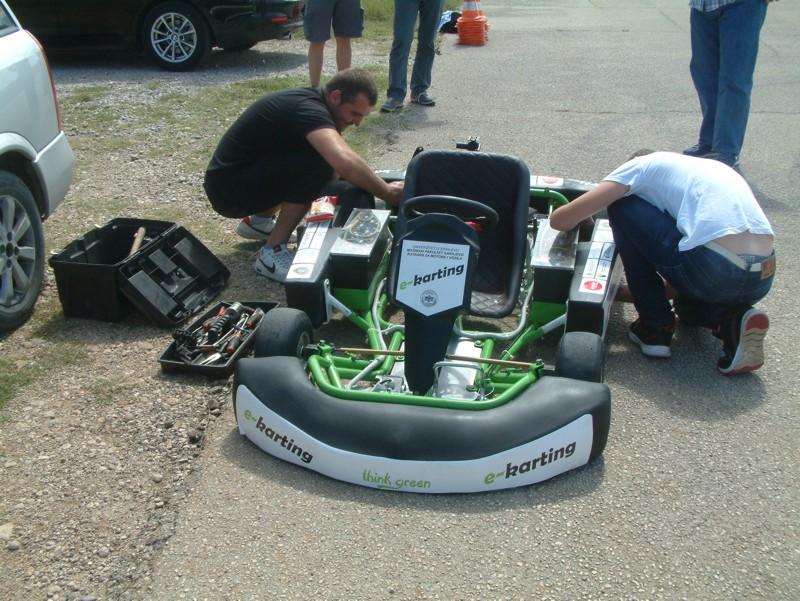

PRIPREME

PREPARATION



ELEKTRIČNI KARTING DETALJI ELECTRIC GO CART SPECIFICATION
ELEKTRIČNI MOTOR: GOLDENMOTOR 5KW ELECTRIC MOTOR: GOLDEN MOTOR 5KW
Napon:48V(vazdušno haladjenje)
Deklarisana PSnaga: 5KW
Efikasnost: 88%
Broj obrtaja: 2000-6000rpm (podesivo)
Kučište: AluSmartum
Dužina (visina): 126mm
Prečnik: 206mm		 Voltage:48V(air cooling)
Rated Power:5KW
Efficeincy: 88%
Speed: 2000-6000rpm (customizable)
Casing: AluSmartum
Length (height): 126mm
Diameter: 206mm
KONTROLER: Vektorima Orijetisan Kontroler (FOC)  za BLDC Motore CONTROLLER: Vector Oriented Controller (FOC) for BLDC Motors
HPC300H Serija - BLDC Kontroler za 5KW Motor HPC300H Series - BLDC Controller for 5KW Motor
Naponsko područje: 48V
Područje struje (Maksimalno): 360A/300A/240A
Težina: 2.2kg
Dimenzije:192 x146 x 77mm
Mogućnoti: Programira se kroz USB port sa računara
Strujni osigurač
Povratno kočenje
Temperaturni sensor ugradjen u motor		 Voltage Range:48V
Rated Current (Max):360A/300A/240A
Weight:2.2Kgs
Dimensions:192x146x77mm
Features: Programmable via USB port
Fuse breaker
Regenerative Braking
Temperature sensoring
BATERIJE: 16 WINSTON BATERIJA, model WB-LYP40AHA (3.2V/40Ah). 48V BATTERY: 16 WINSTON BATTERY model WB-LYP40AHA (3.2V/40Ah) 48V.
BMS: BMS:
Model bez imena No name model
PUNJAČ BATERIJA: BATTERY CHARGER:
KUČNA IZRADA HOME MADE
MAKSIMALNA BRZINA 87 kilometara na sat. MAXIMUM SPEED 87 kilometers per hour.


YOUTUBE VIDEO

VIDEO LINK OVDJE - HERE http://youtu.be/KQQqfpcbQVY

Dailymotion VIDEO


ELEKTRICNI KARTING BRZINSKI TEST - ELECTRIC GO... by rudolf-bosnjak

VIDEO LINK OVDJE - HERE http://dai.ly/x24qntl

ELEKTRIČNI KARTING
SLALOM VOŽNJA
VOZAČ RUDOLF BOŠNJAK		 ELECTRIC GO-CART
SLALOM DRIVE
DRIVER RUDOLF BOSCHNJAK


ELECTRIC GO-CART SLALOM DRIVE BY RUDOLF... by rudolf-bosnjak

VIDEO LINK OVDJE - HERE http://dai.ly/x24qh0z


ELEKTRIČNI KARTING
SLALOM VOŽNJA
VOZAČ MIRZA SMAILBEGOVIĆ		 ELECTRIC GO-CART
SLALOM DRIVE
DRIVER MIRZA SMAILBEGOVIĆ


ELEKTRIČNI KARTING - ELECTRIC GO/CART SLALOM TEST BY MIRZA - STATIC CAMERA by boran-pikula

VIDEO LINK OVDJE - HERE http://dai.ly/x24s5qa
