VW Golf Citystromer, tipo 1HX0E, Hatchback, Electric-Motor, 0 ccm, 20 KW, 27 HP, 100 kmph, 1994 to  1997

MISSING Steuergerät

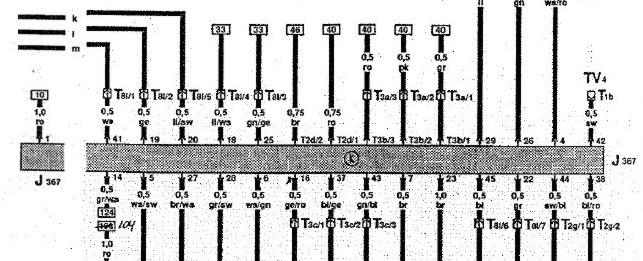

Still missing part mark on schematic below with name J367 and below is name in German language.

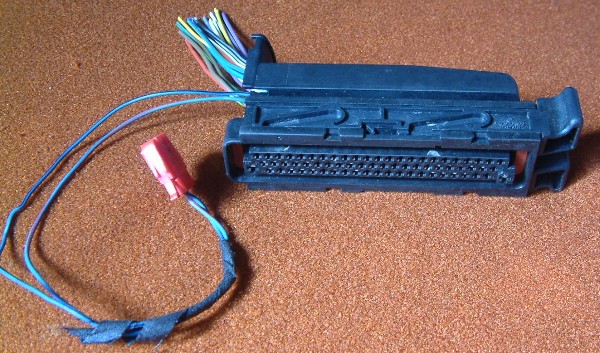

Above 68 pin connector is only what I found with cable cut.

There is 3 wire marked with k, l and m, which are connected to charger, still searching what is purpose for them...










Missing Battery Management System - Steuergerät BMaS
manufacturer Ing. Buro Becker, Germany


BELOW 3 IMAGES  IMAGE ARE FROM PETR DVORAK CAR GOLF 3 City Strommer from Czech Republic.

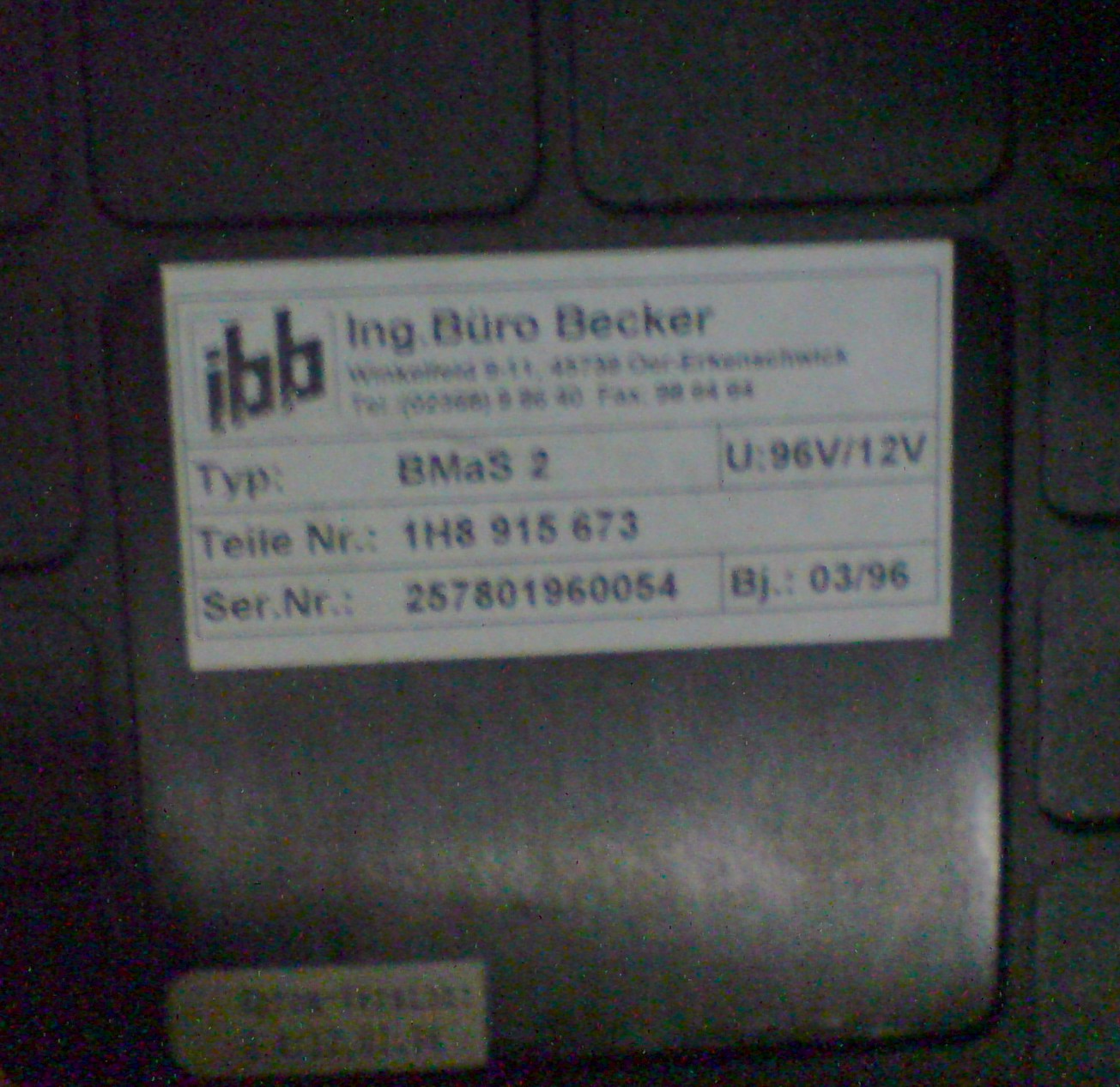

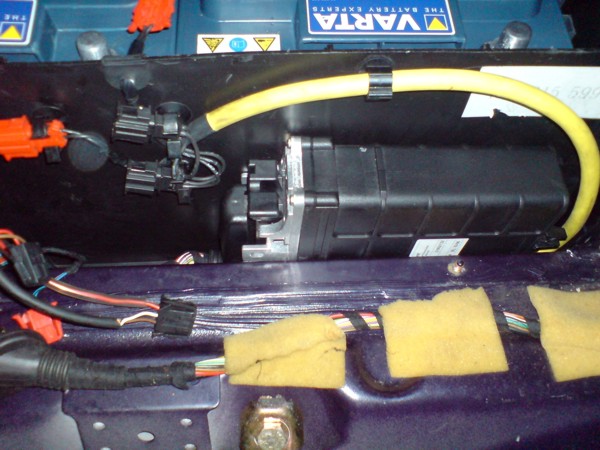

IMAGES SHOWING WHAT IS WHAT.

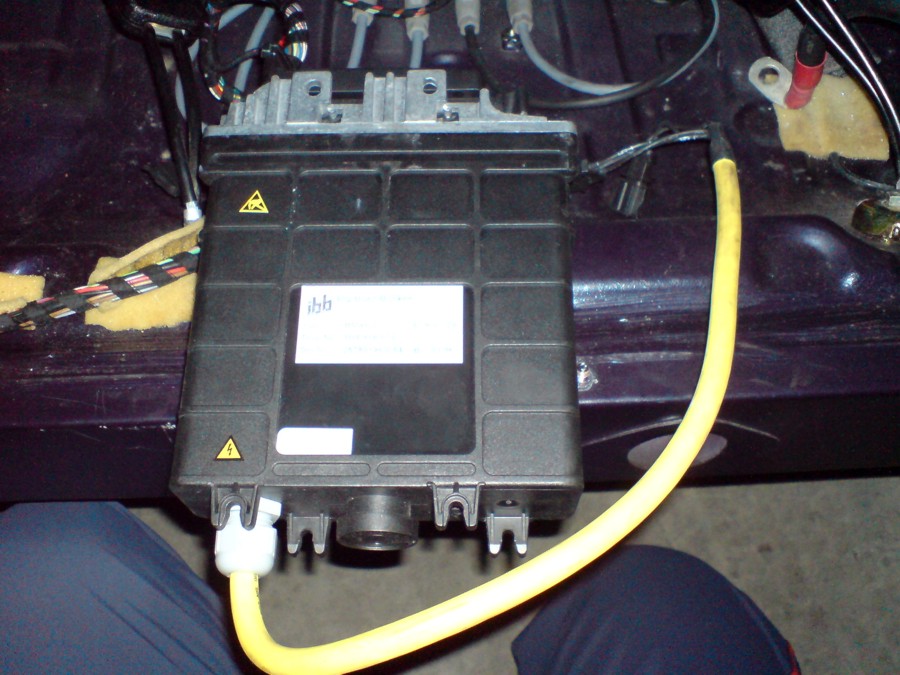

BMS STEUERGERERAT BMaS


Here is web site about Ing. Buro Becker http://www.ibb-oe.com

Here is web site about Ing. Buro Becker Battery Management System http://www.ibb-oe.com/html/bvm.html

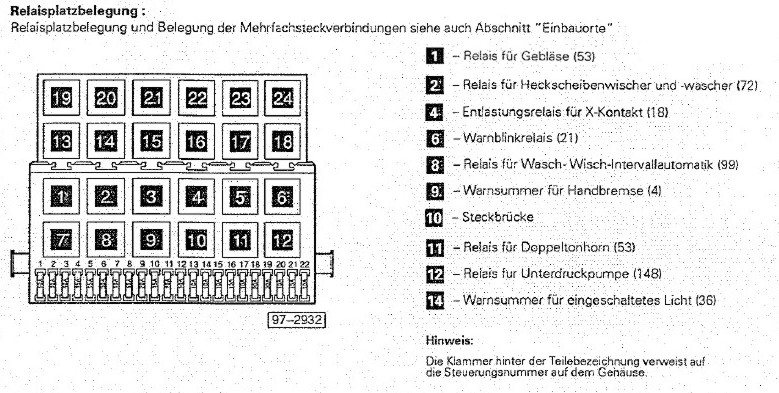

Missing VOLKSWAGEN relay board

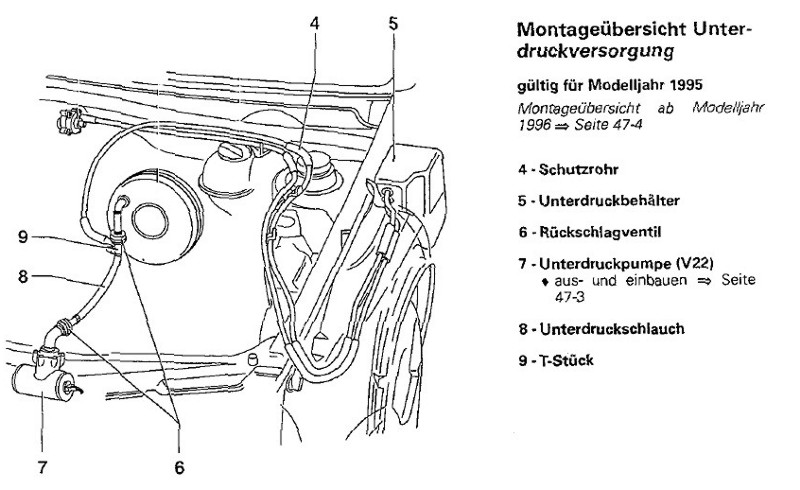

MISSING VACUUM PUMP AND VACUUM TANK SYSTEM


Missing parts and their numbers and explanations.












Regards
Rudolf Bosnjak  CONTACT DATA WITH ME IS HERE



Best regards

Rudolf Bosnjak

May 2007 year.
