VW Golf Citystromer, tipo 1HX0E, Hatchback, Electric-Motor, 0 ccm, 20 KW, 27 HP, 100 kmph, 1994 to  1997

SIEMENS SIADIS - DOS SOFTWARE PROGRAM

Dear friends WORLDWIDE,

Can any one worldwide help in finding MORE INFORMATION ABOUT
SIEMENS SIADIS - DOS PROGRAM which run SIEMENS SIMOVERT model 6SV1 LONG INVERTER.

SIADIS, is DOS-based serial communication interface for SIEMENS SIMOVERT 6SV inverters. The SIADIS program is a powerful program that allows you to change a number of control parameters of the inverters. SIADIS is great for reprogramming inverter or checking voltage drops. It's not so good for checking amp draw while you're driving down  the road has a little tiny bar graphs and it's useless for importing data into other software. SIADIS diagnostic tool is for ordinary SIMOVERT which is supported via CAN RS232 (serial port) SIADIS.

RS 232  X5 MALE CONNECTOR ON INVERTER

This is X5 MALE CONNECTOR ON INVERTER.



COMPLETE DRAWING FOR RS 232 INTERFACE CABLE ADAPTER


X5 FEMALE to DB9 MALE RS232 ADAPTER CABLE DATA



I have a lot of trouble to find original CONNECTORS and again I found few MALE and FEMALE ORIGINAL CONNECTORS IN JUNK YARD and replace BOTH with new one. Now all connectors are as original as is visible on below image.

RS232 X5 ADAPTER CABLE TO DB9

Cable with marking RS232 is ADAPTER CABLE.



386DX PC   386DX-25MHz

Old 386DX PC which only working with this SIADIS program.



STARTING PROGRAM SIADIS FOR GOLF A3 CITY STROMMER

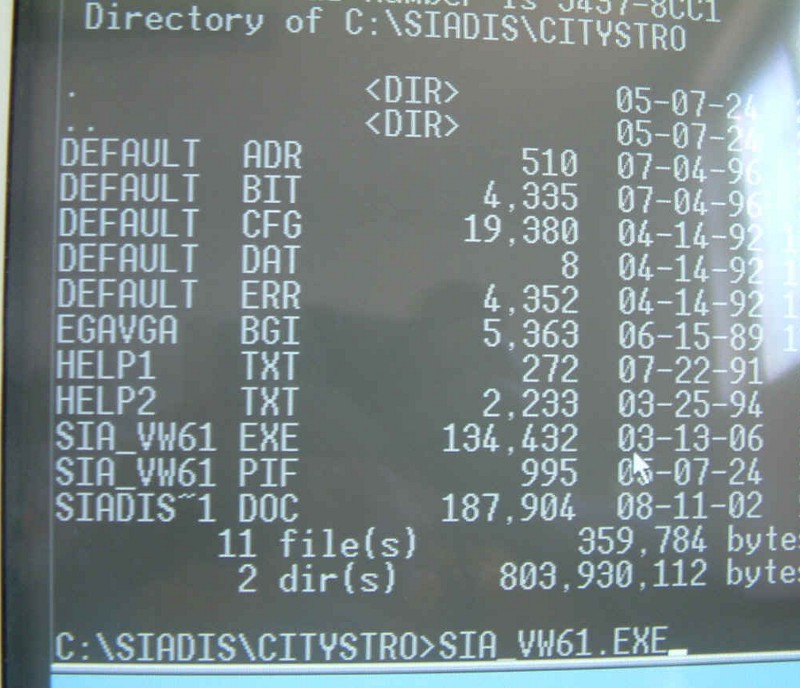

SIADIS FILE LISTING

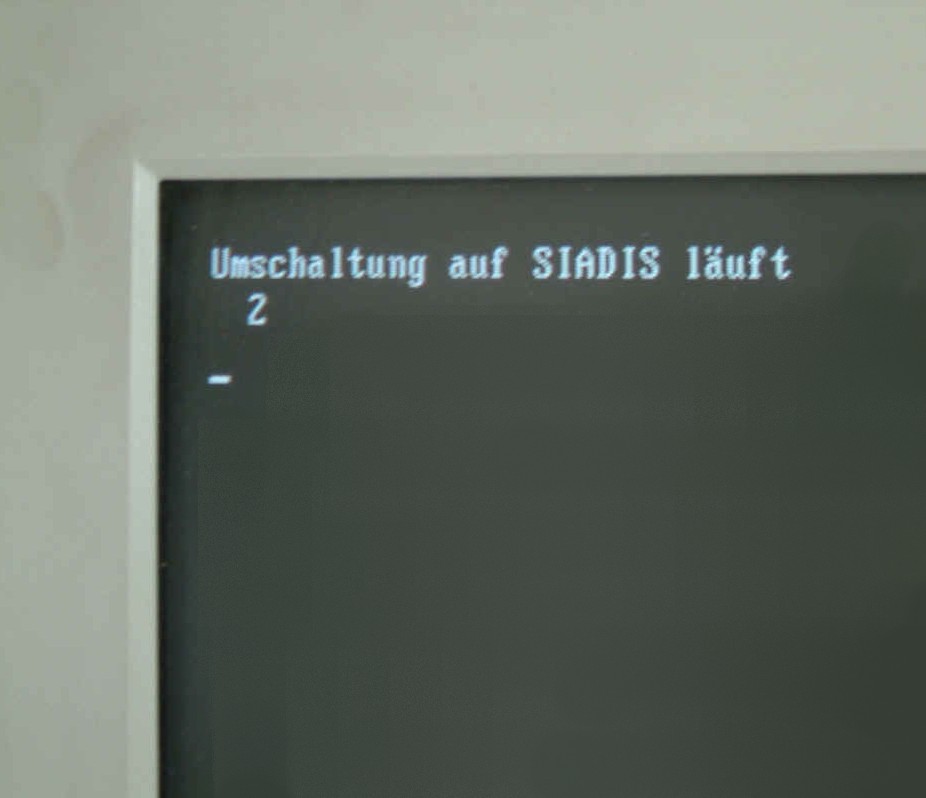

When started file sia_vw61.exe trying to establish communication via RS232 link with inverter
and this message appear on the computer screen.

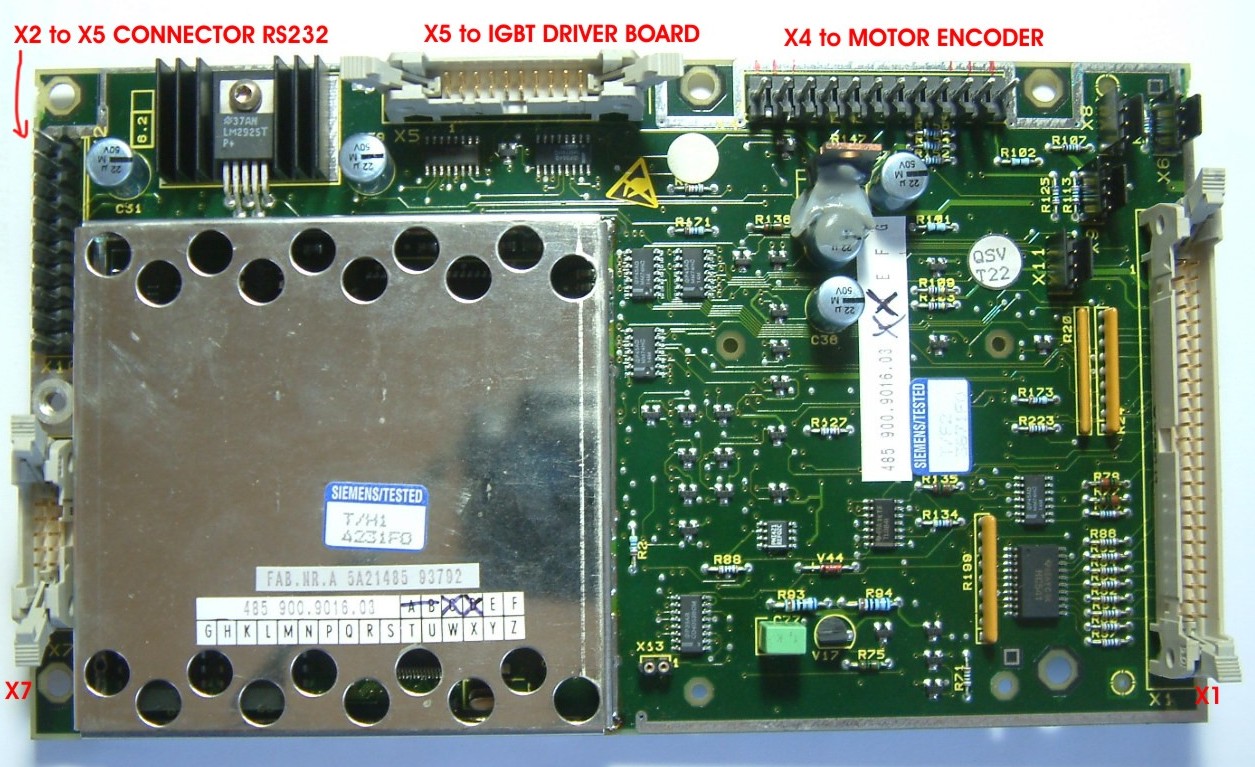

In this moment program trying to establish contact with this board
via RS232 PROTOCOL,   THROUGHOUT X5 CONNECTOR WIRES,
WHICH ARE CONNECTED TO X2 CONNECTOR ON LEFT TOP CORNER OF PCB NUMBER 485000.5016.03

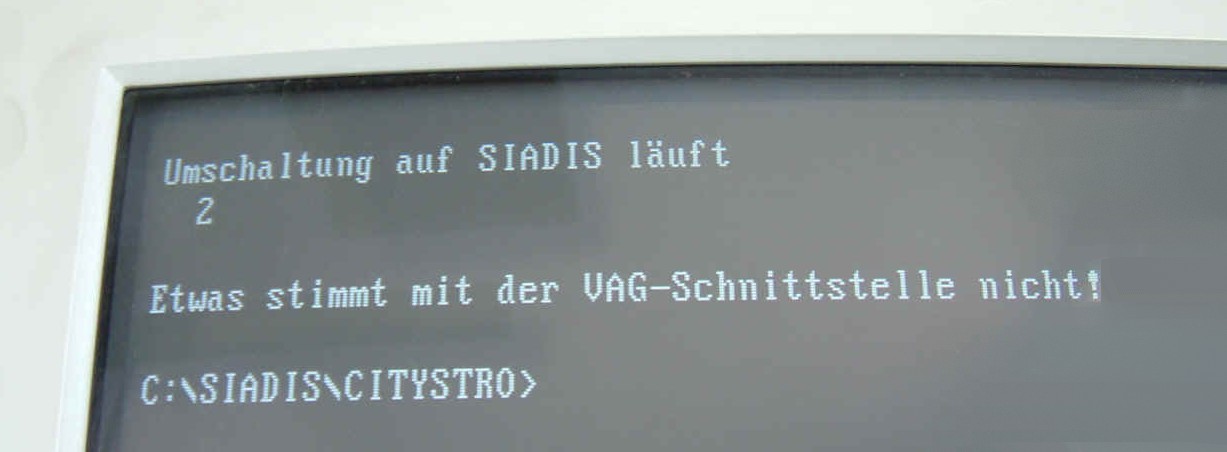

If, is not possible to establish communication via RS232 link with inverter this message appear on screen.

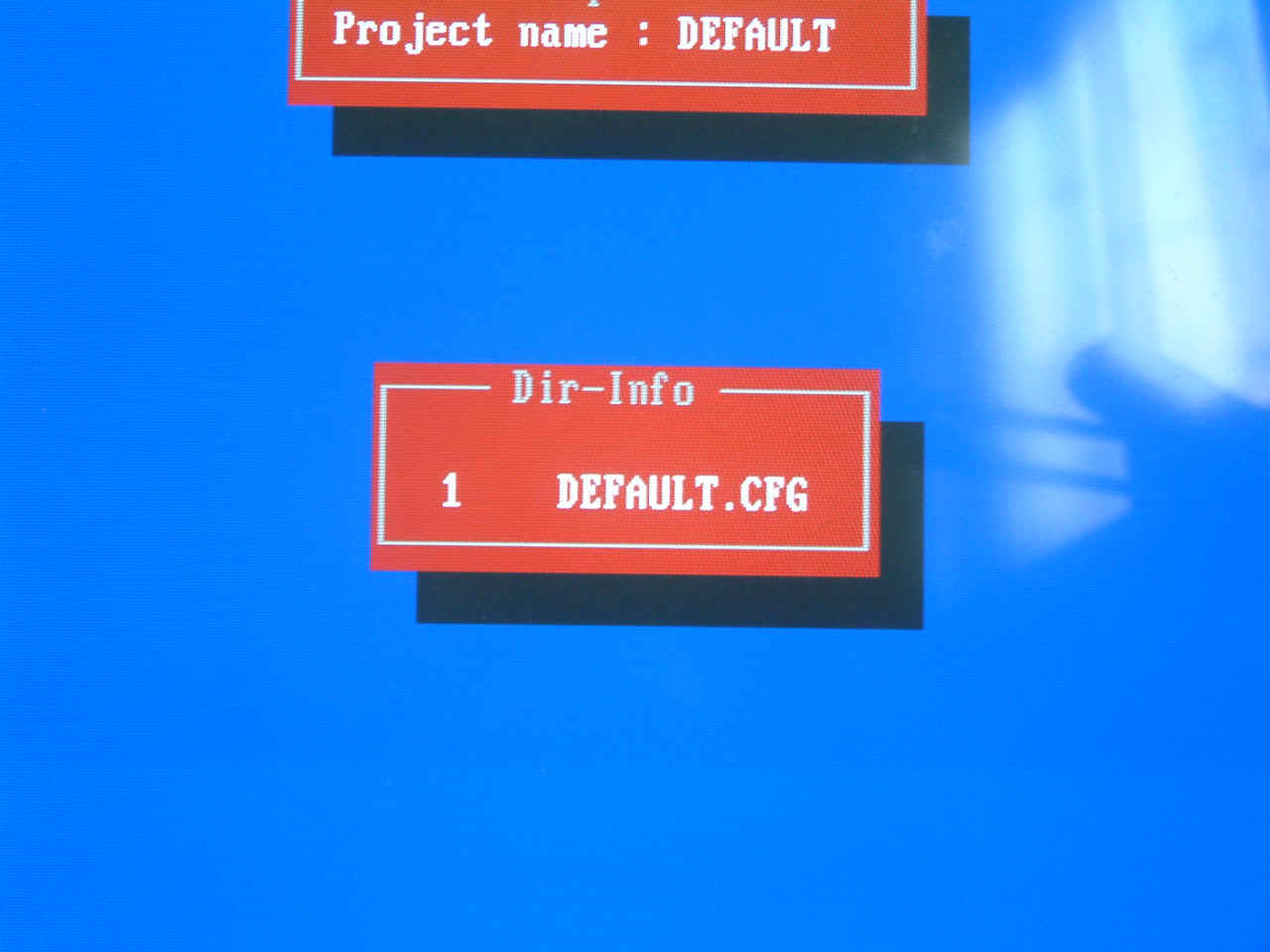

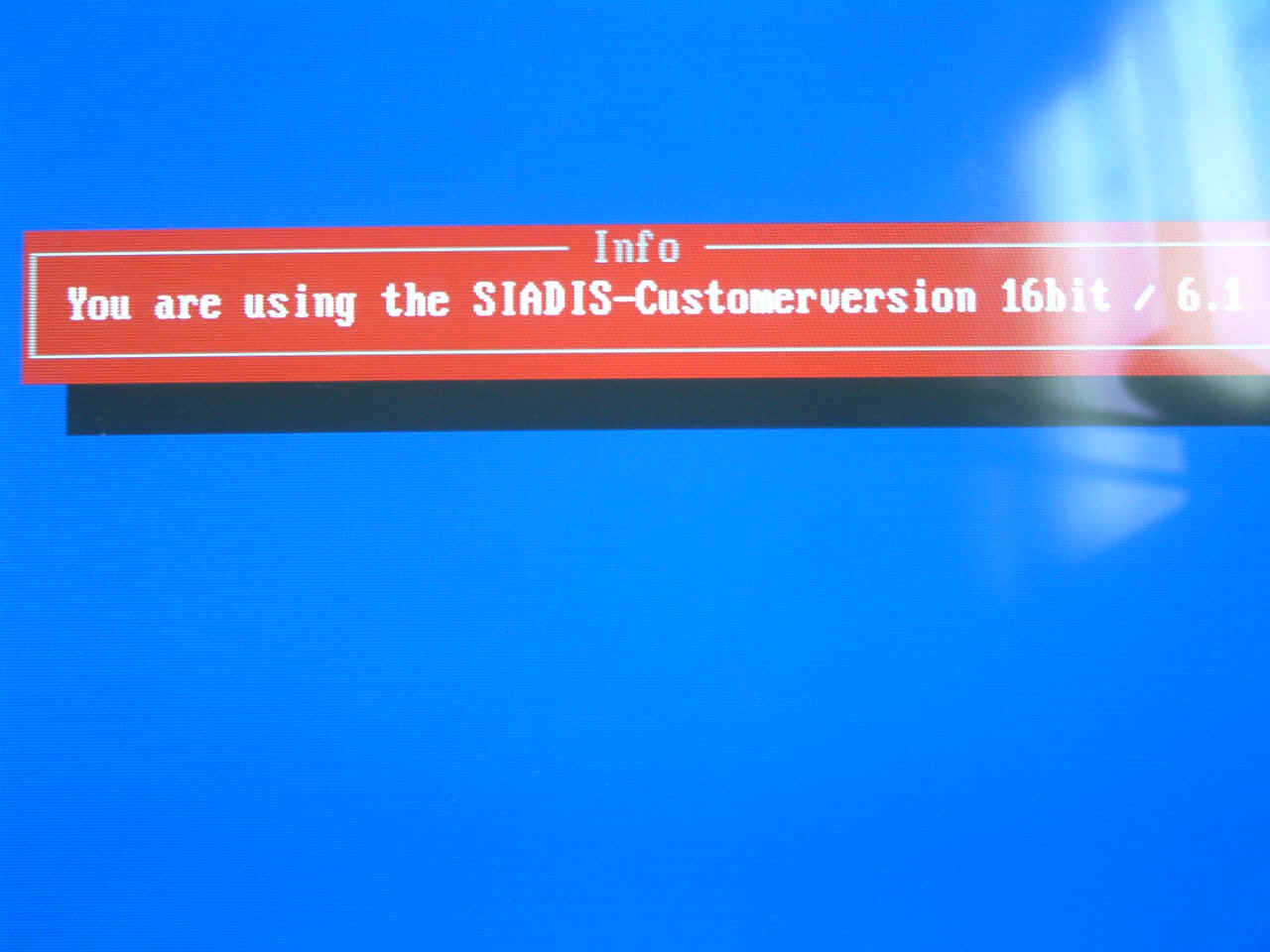

IF, COMMUNICATION IS SUCCESSFUL YOU GET THIS MESSAGE

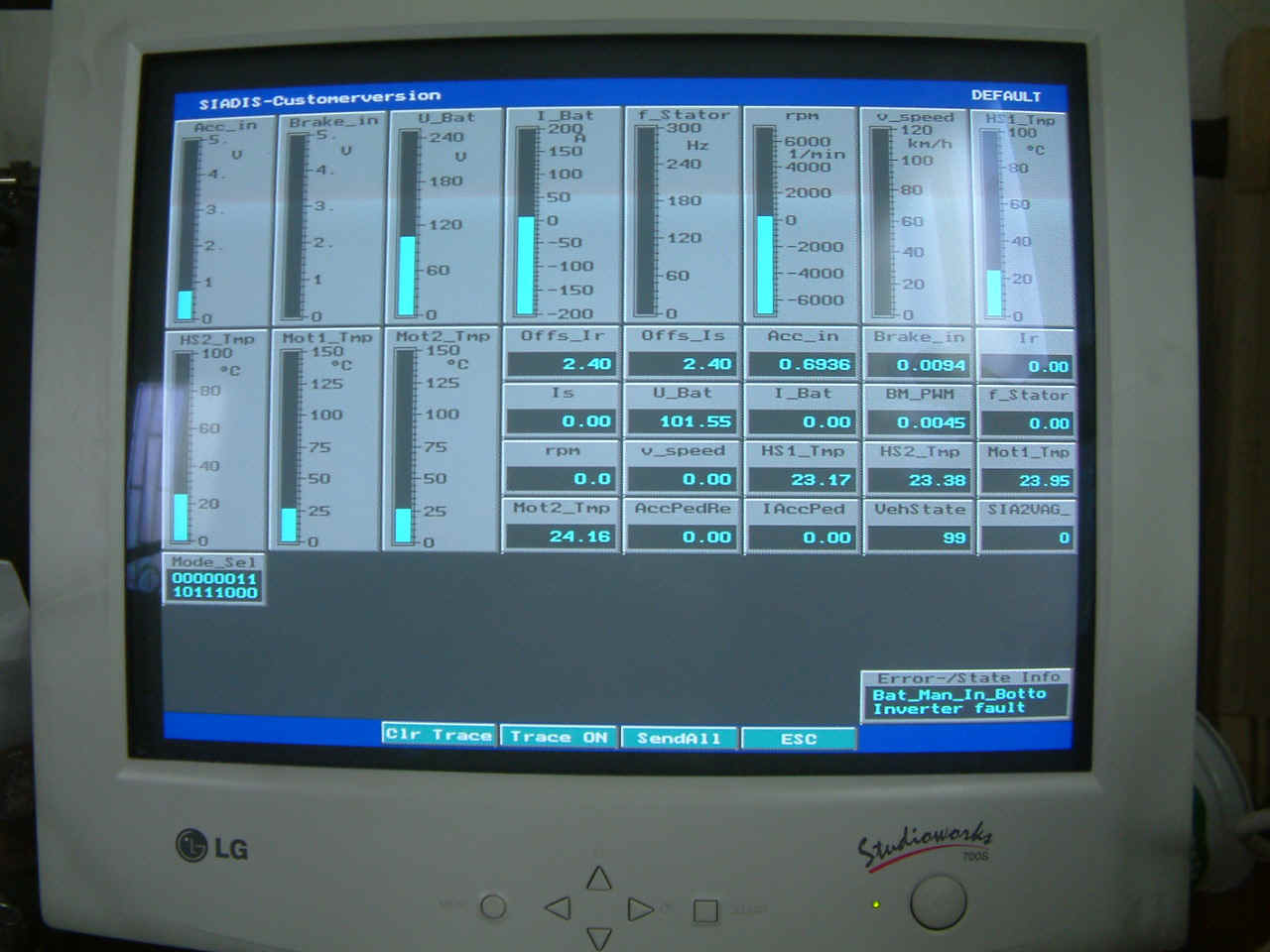

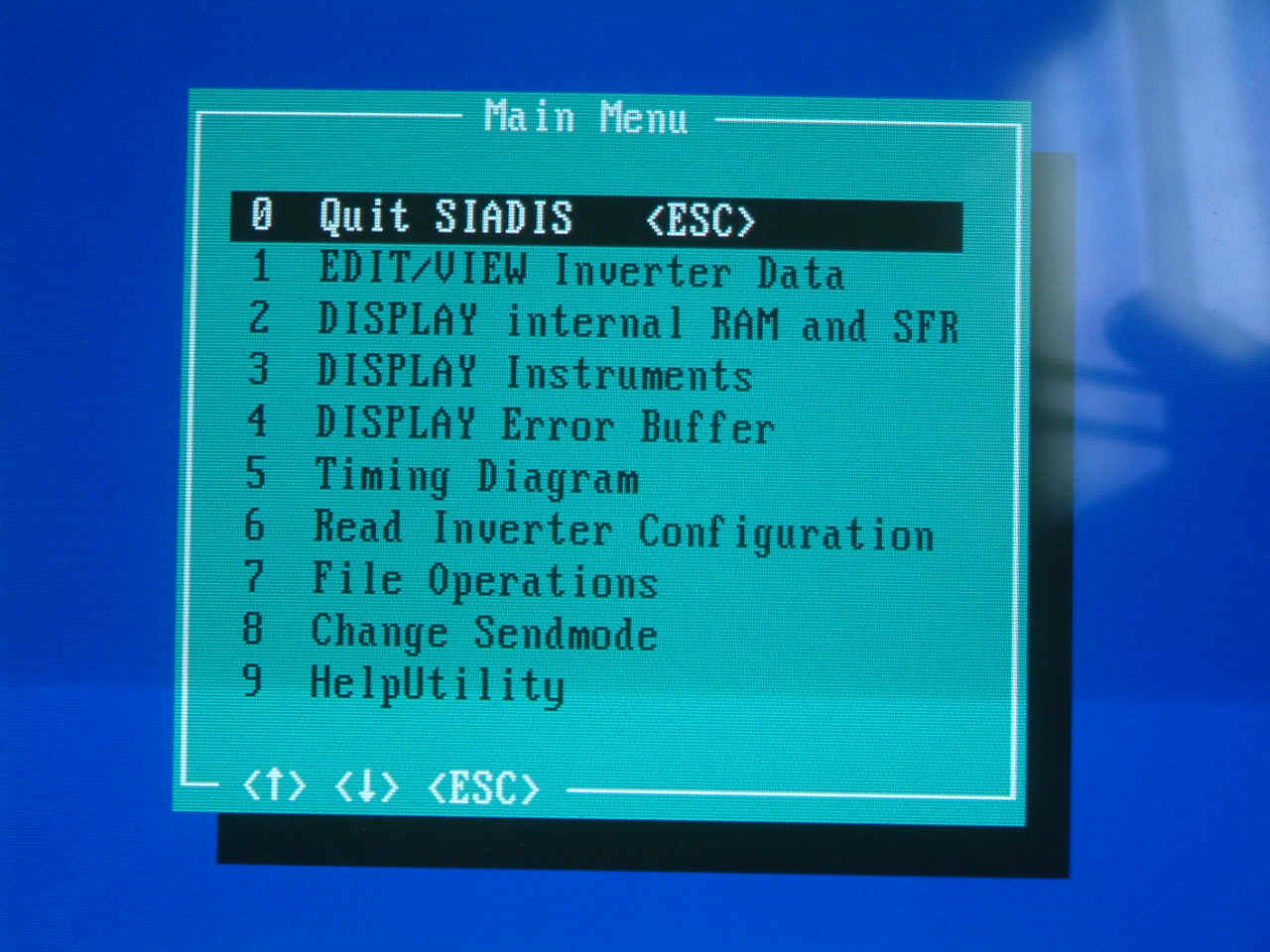

Use scroll and select 3 DISPLAY Instruments... press ENTER.

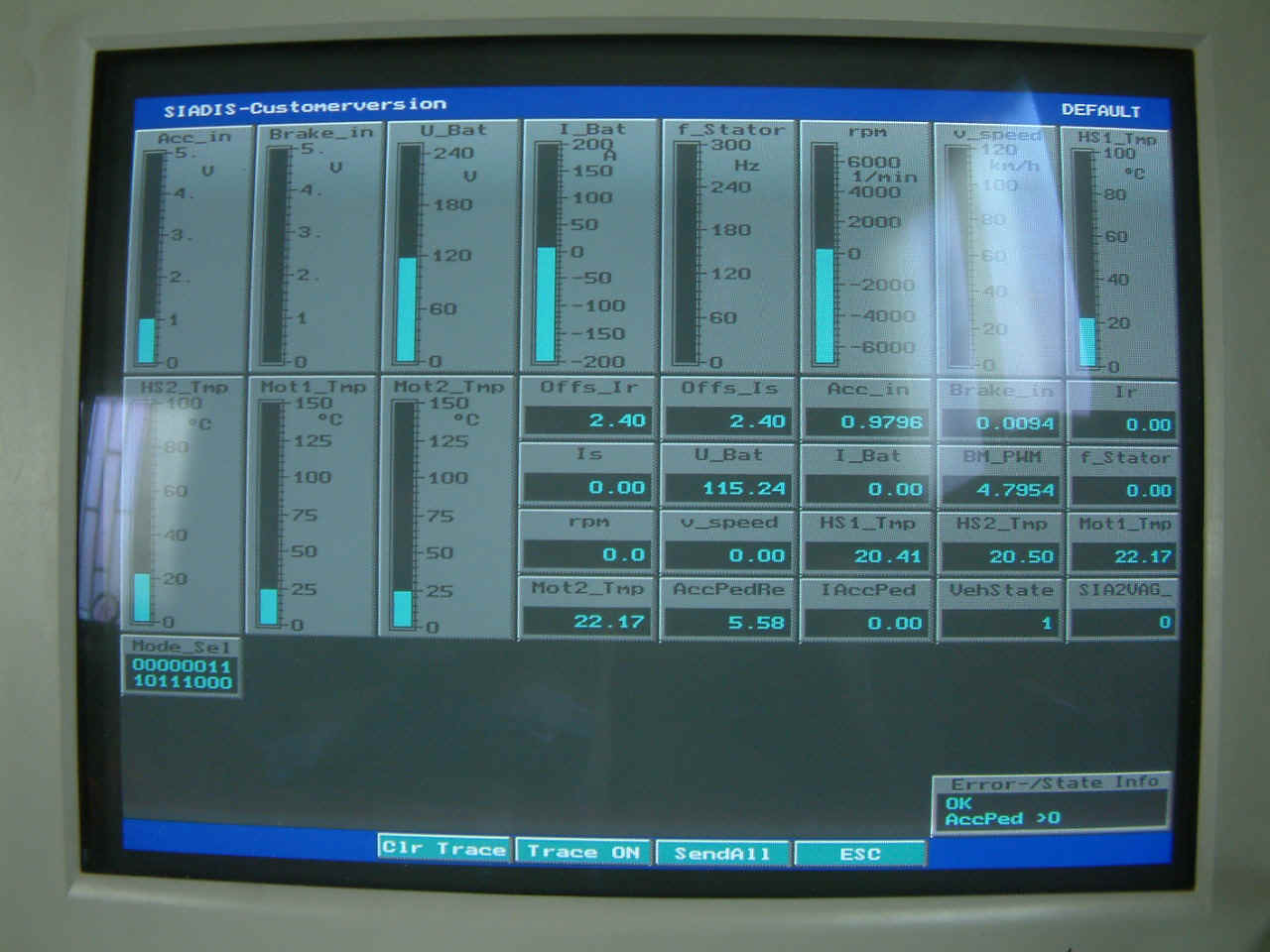

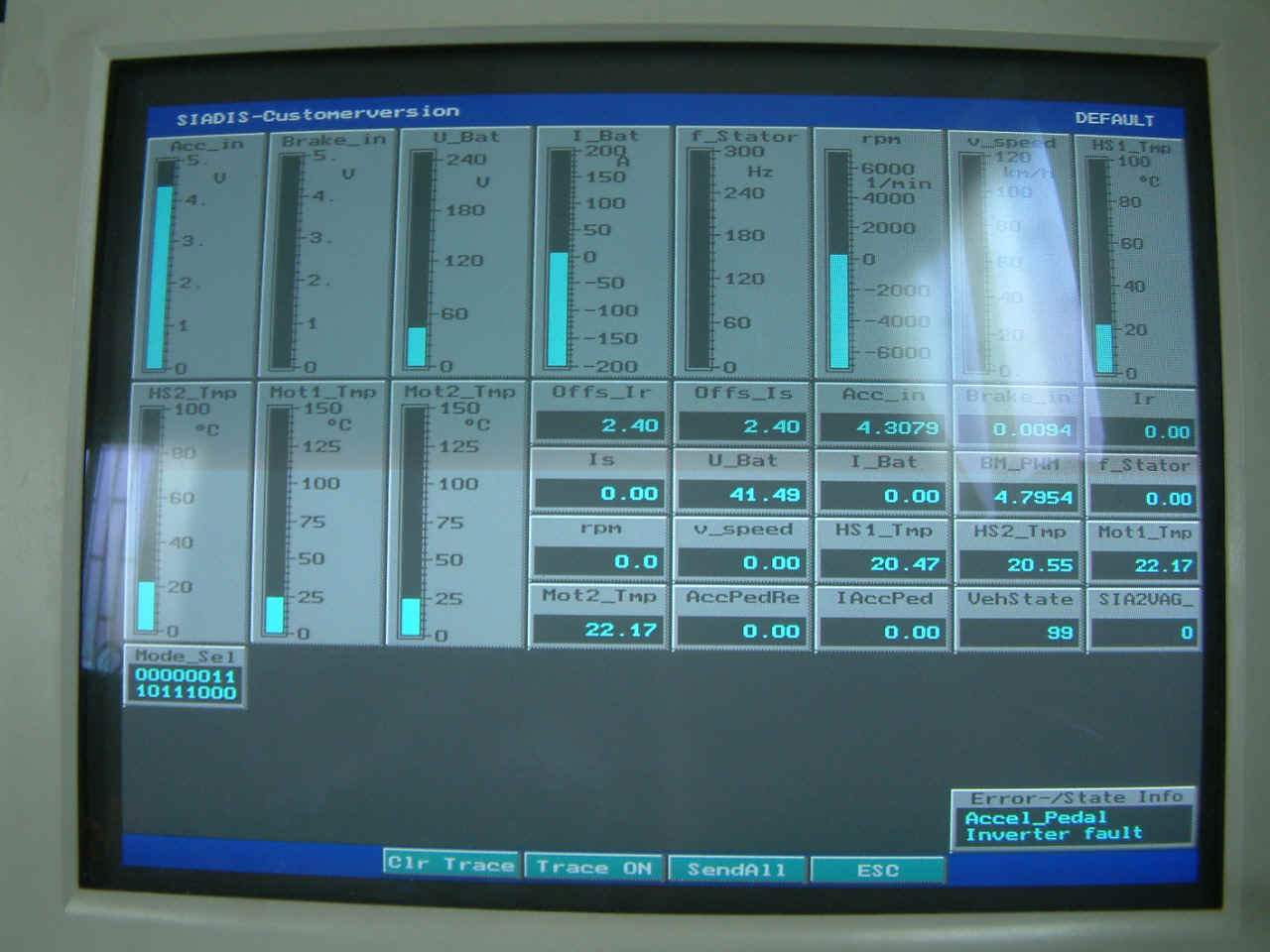

MESSAGES from INVERTER and MOTOR as INFORMATION ON THE SCREEN

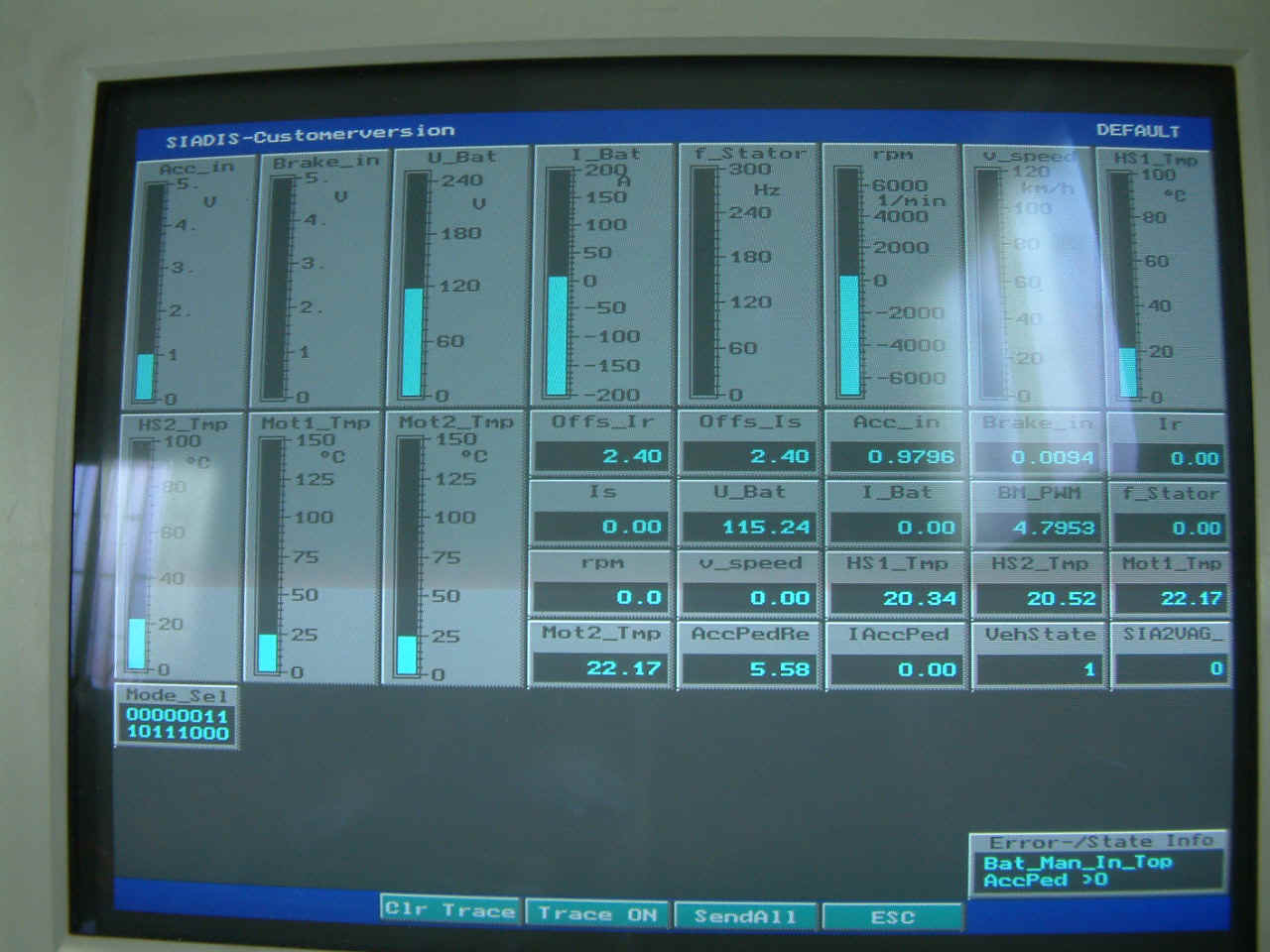

ALL Error-State Info MESSAGES  ARE SHOWN IN
BOTTOM RIGHT CORNER OF THE SCREEN IN ICON Error-/State Info


                                                                                                                         Error-/State Info






                                                                                                                  Error-/State Info




                                                                                     Error-/State Info

OK MESSAGE


                                                                                                                    Error-/State Info

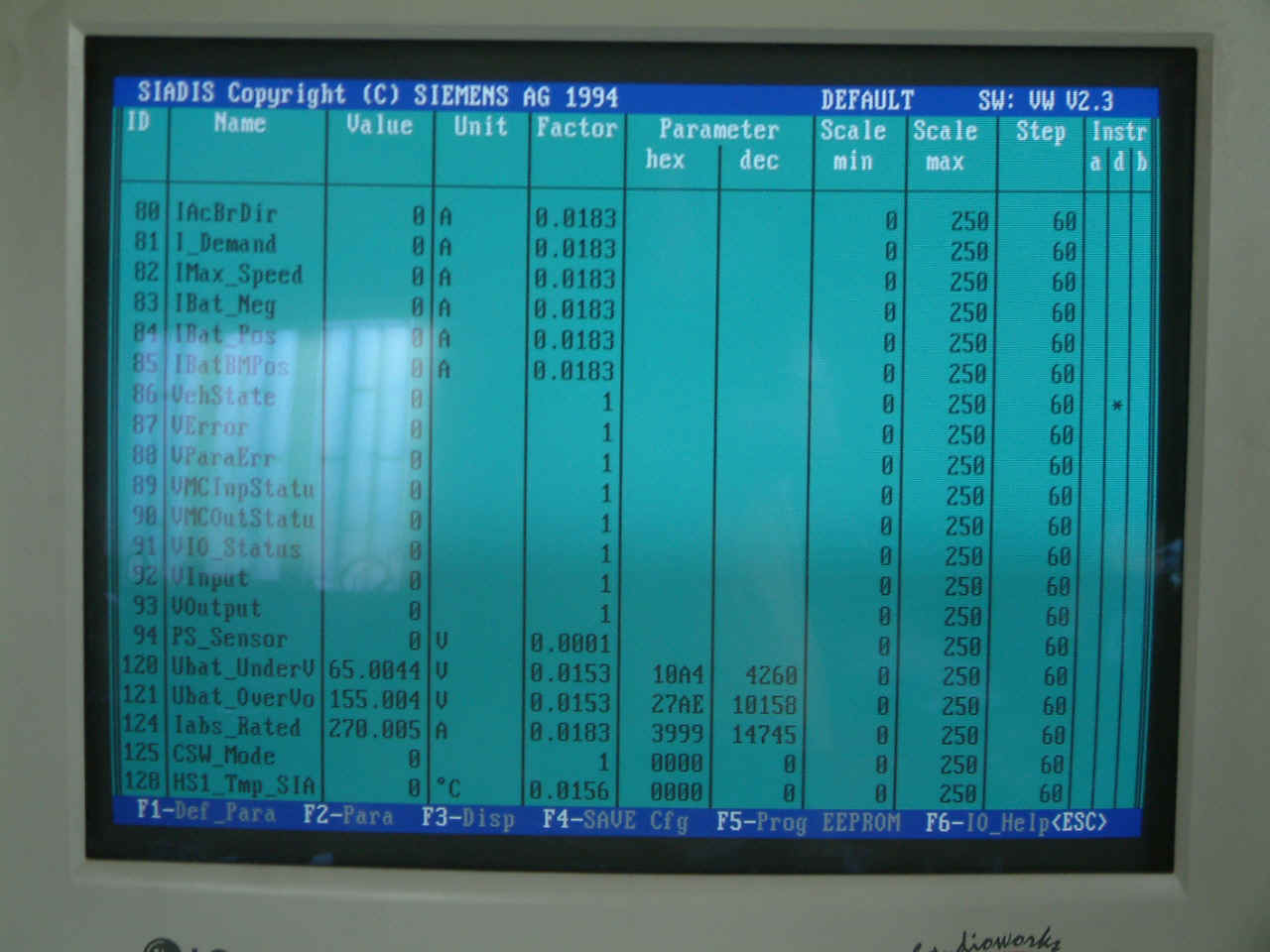

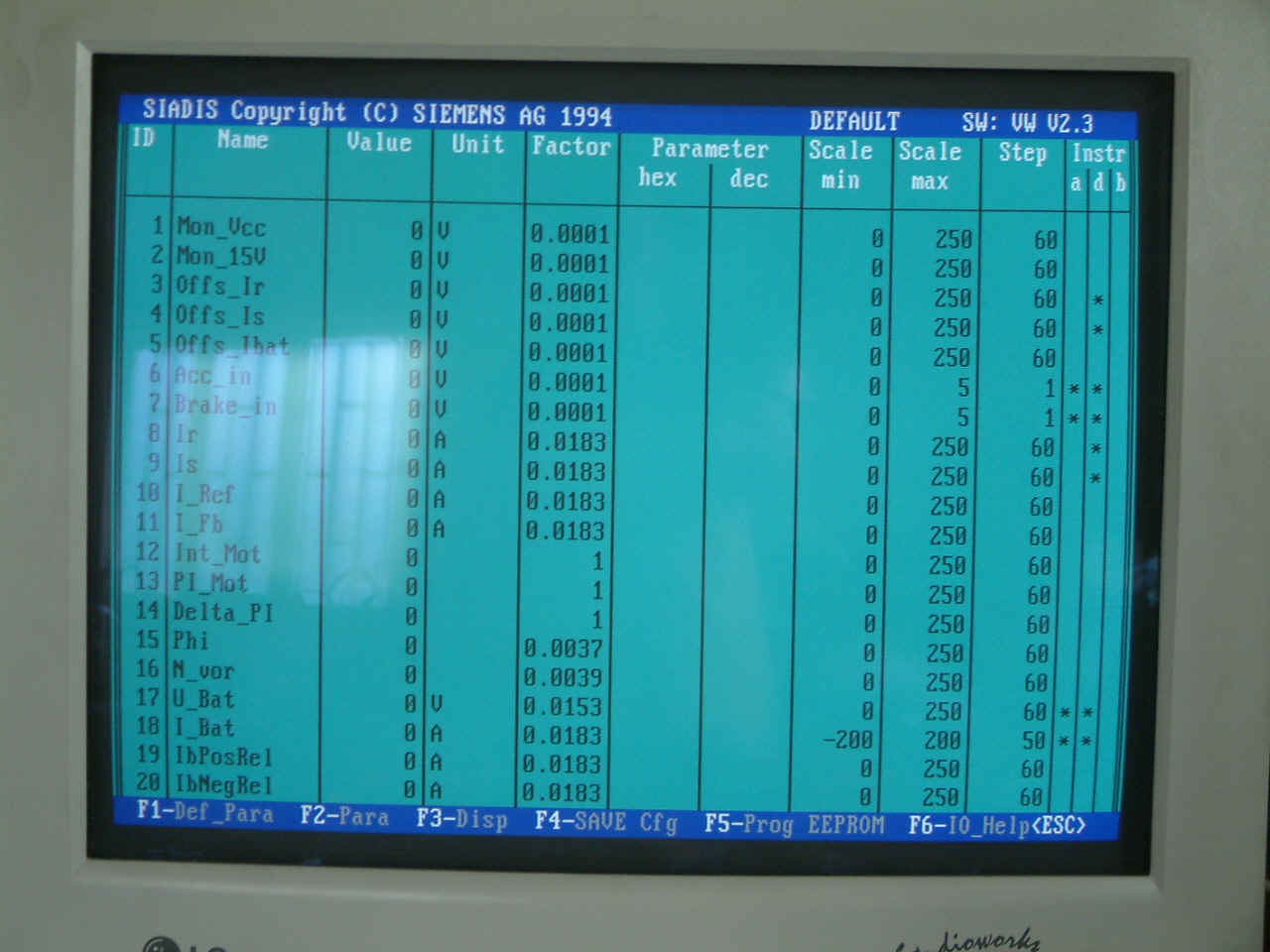

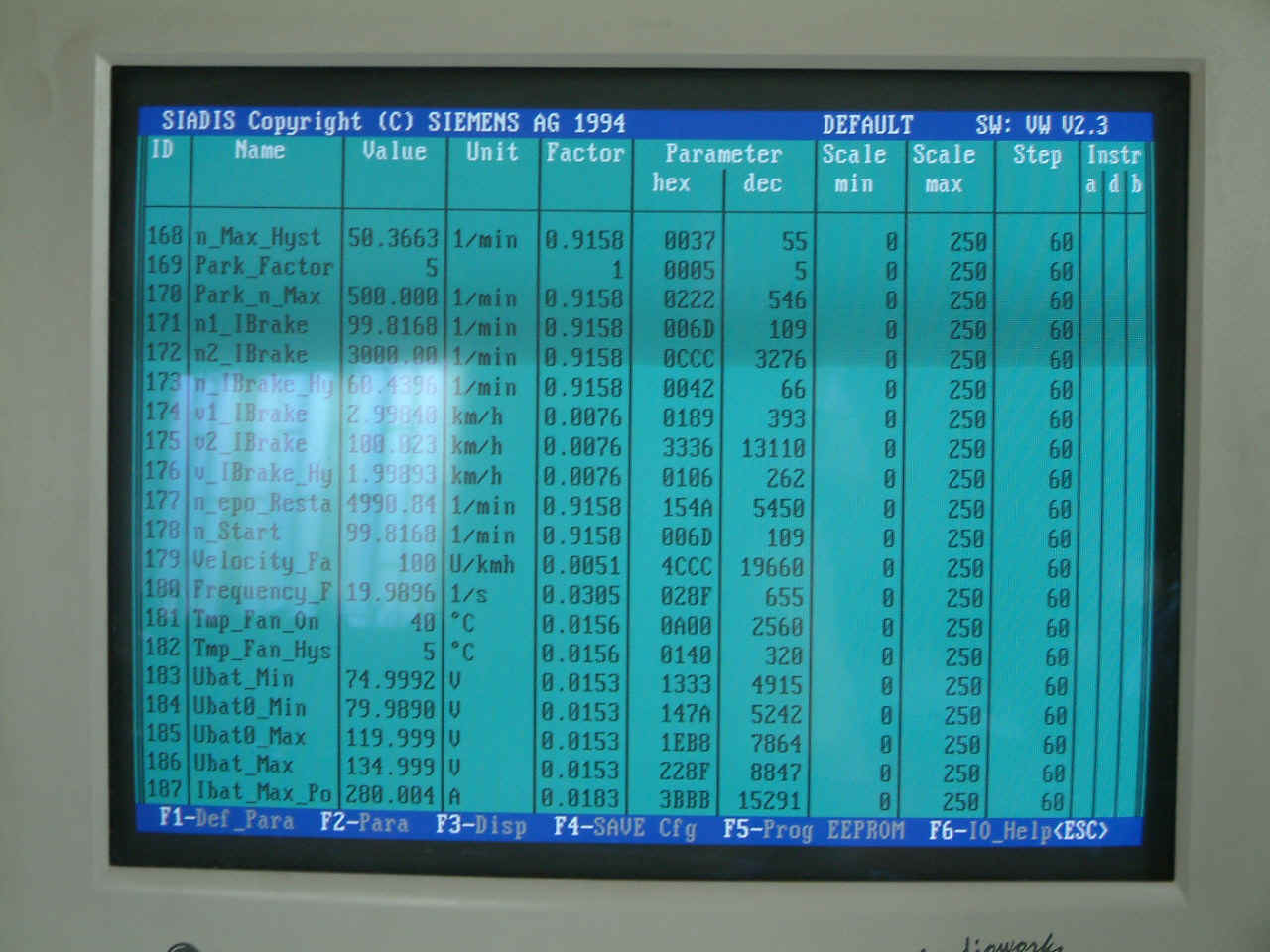

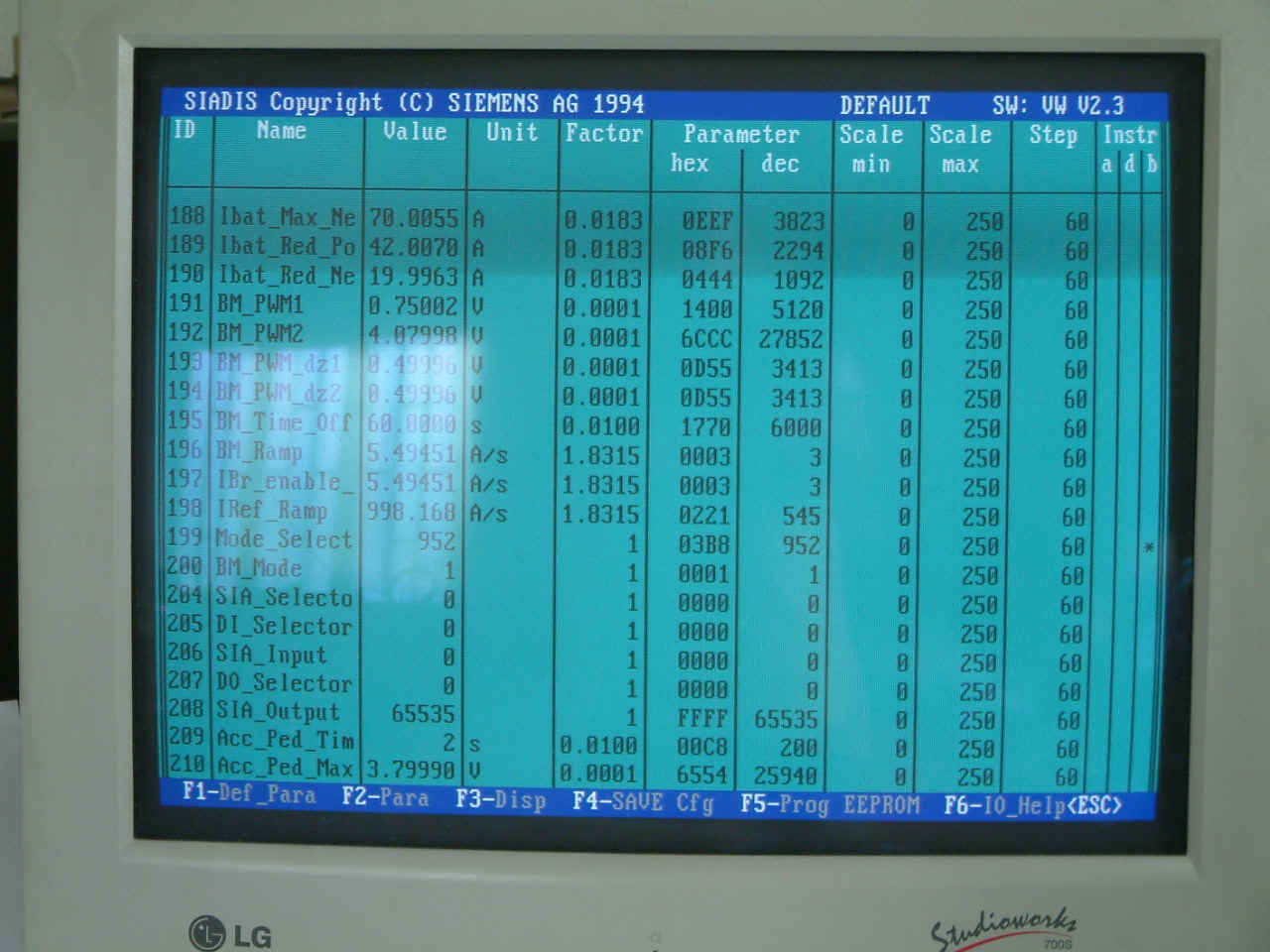

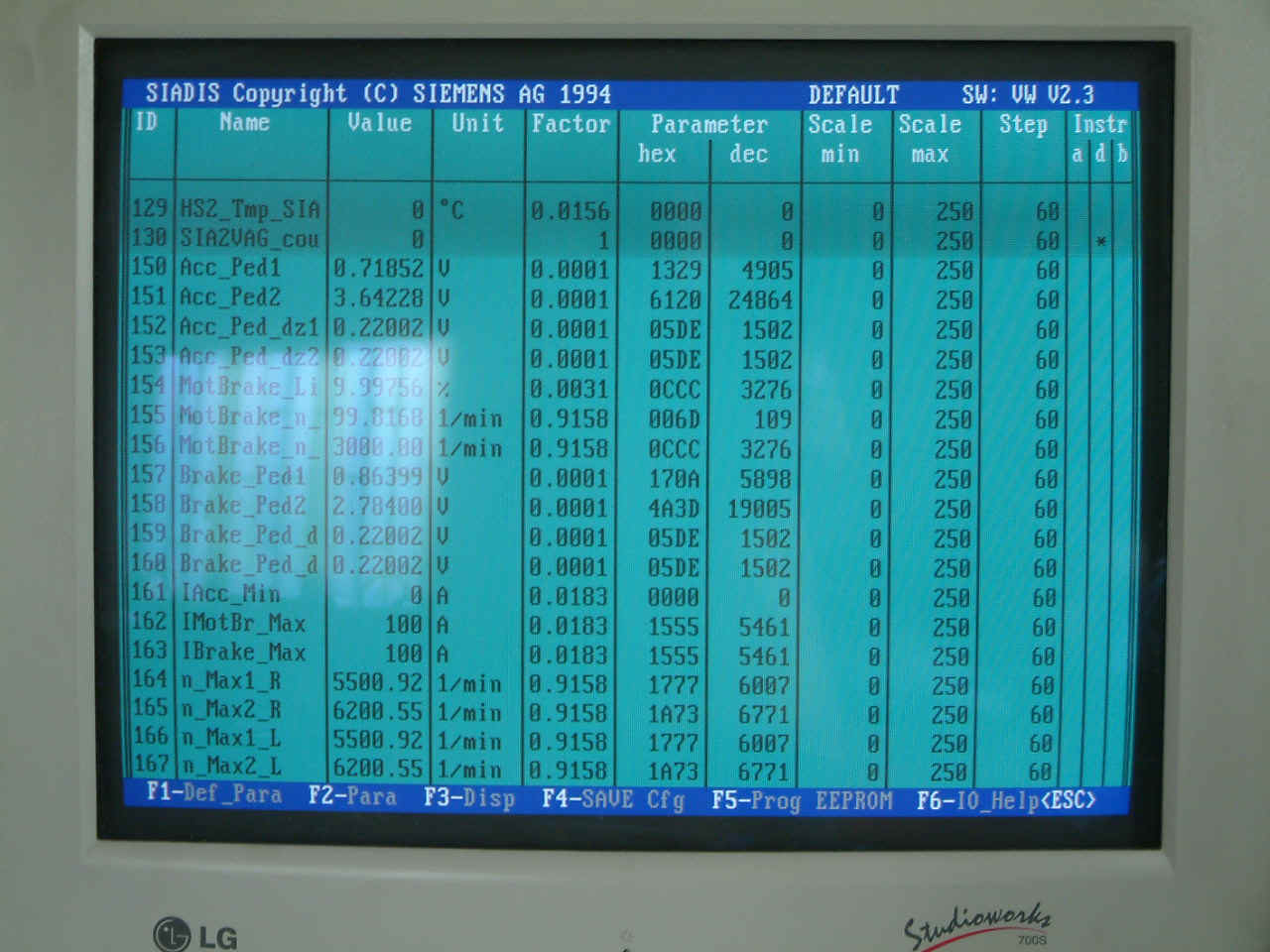

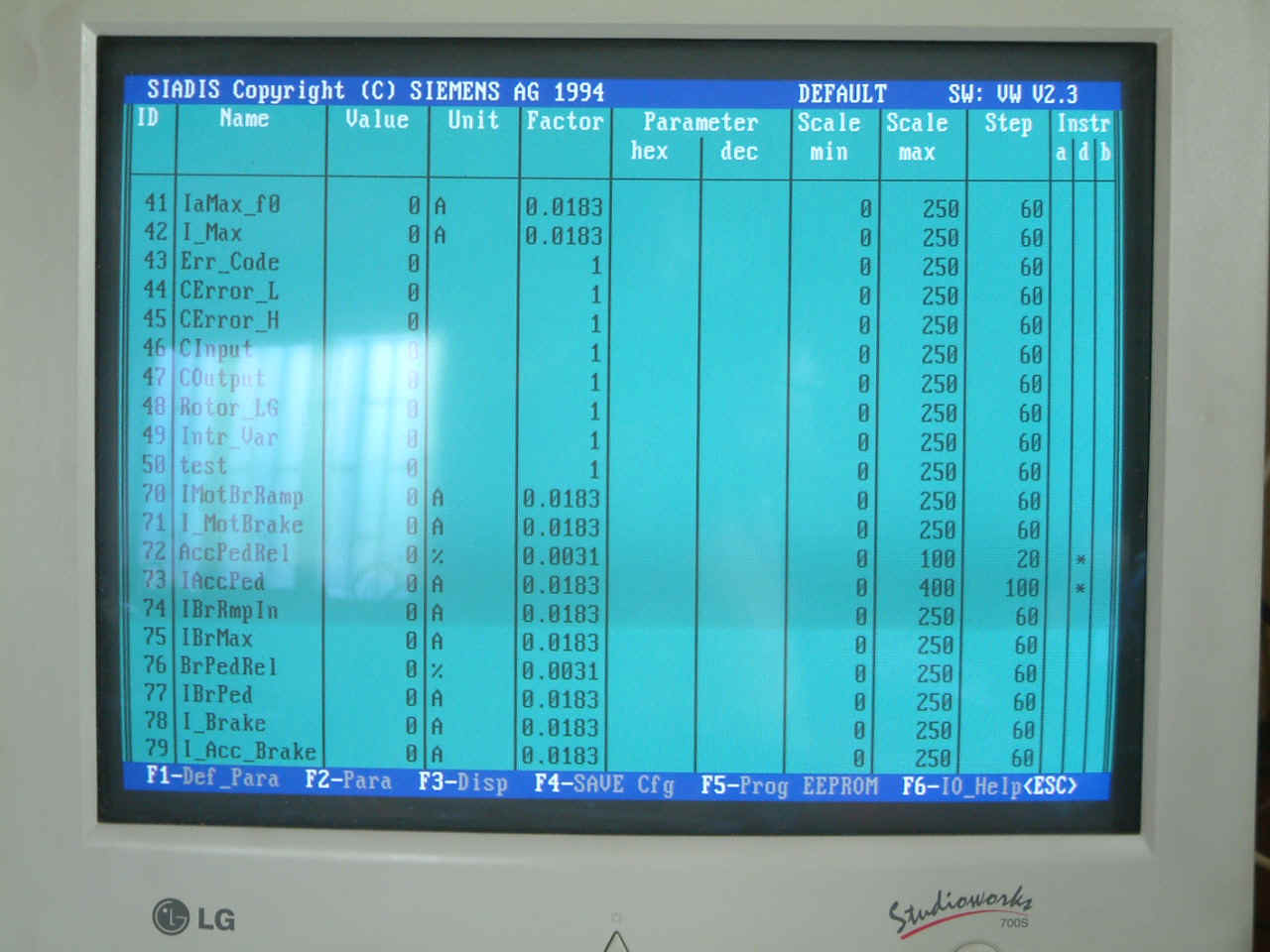

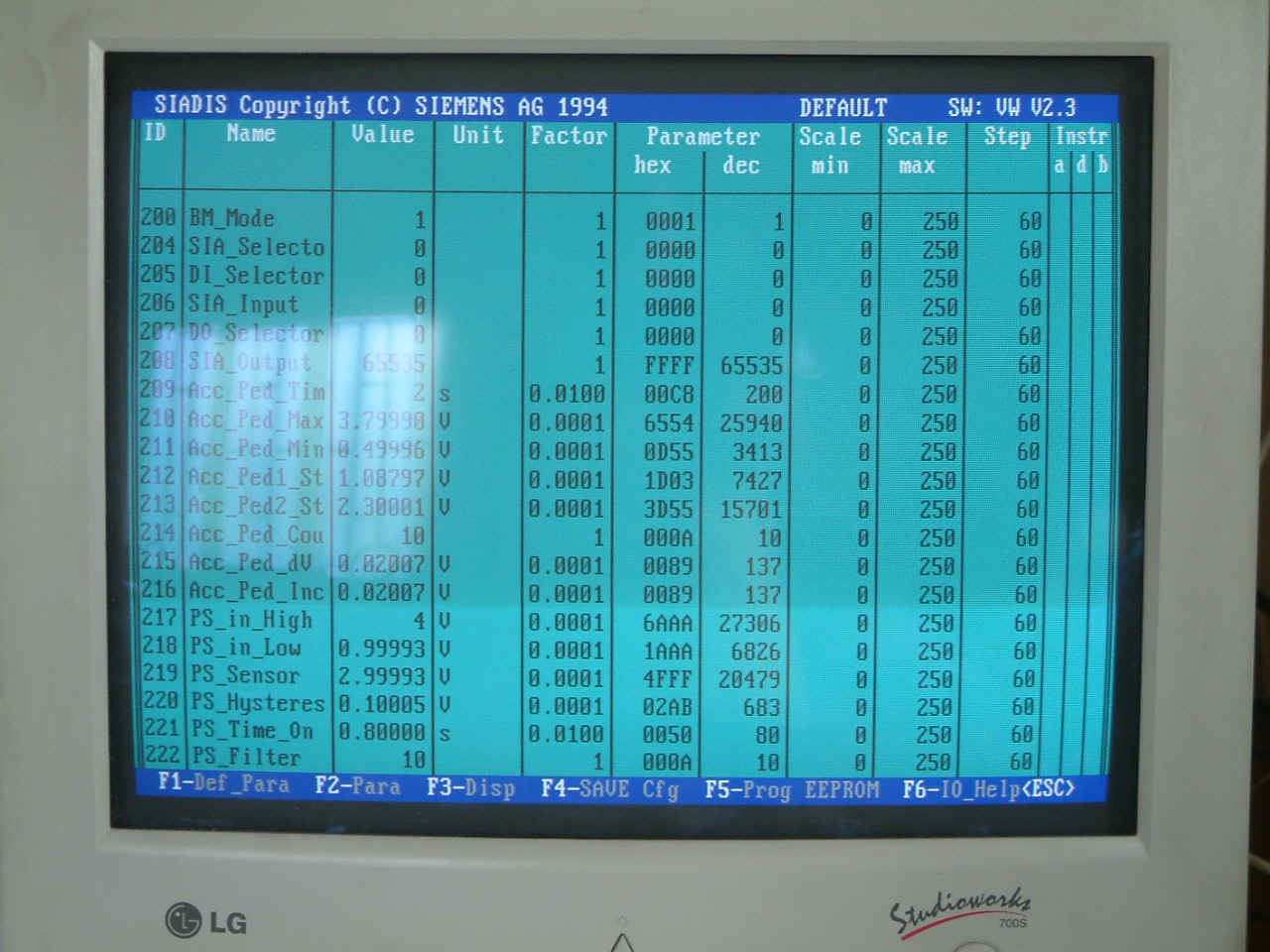

LIST OF ID - INVERTER SETUP PARAMETERS

There is 222 ID parameters in this listing, can any one send this data to me,
full explanation in writing what each ID parameter doing.

















PLEASE SEND ME ALL SOFTWARE VERSIONS FOR THIS PROGRAM TO TEST.



Regards
Rudolf Bosnjak  CONTACT DATA WITH ME IS HERE



WEB LINK TO PROEV WEB SITE ABOUT TESTING SIADIS SOFTWARE More of pictures and COMMENT about running the software properly.

http://www.proev.com/TLog/T0001.htm

http://www.proev.com/TLog/T0002.htm


Best regards

Rudolf Bosnjak

May 2007 year.
